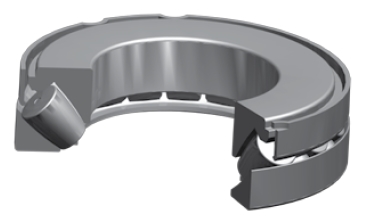

Timken 29460EJ
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
300 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
87796358102
Dimensions
D - Outside Diameter
540 mm
d1 - Cone Outside Diameter
485 mm
D1 - Cup Bore
392 mm
E - Shoulder Diameter - Housing (Max)
418 mm
H - Shoulder Diameter - Shaft (Min)
443 mm
r - Fillet Radius
5 mm
S - Dimension
175 mm
T - Total Width
145 mm
T1 - Cage Position
128.6 mm
T3 - Cup Width
70.5 mm
T4 - Cone Width
95 mm
Basic Load Ratings
Static Load Rating
15000000 N
Dynamic Load Rating
4990000 N
Thermal Speed Rating
600 rpm
