Timken 29464EM

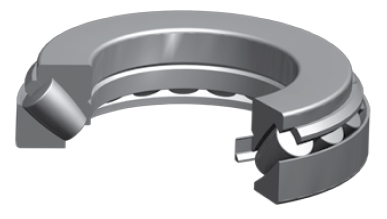

Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
320.000 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
87796163102

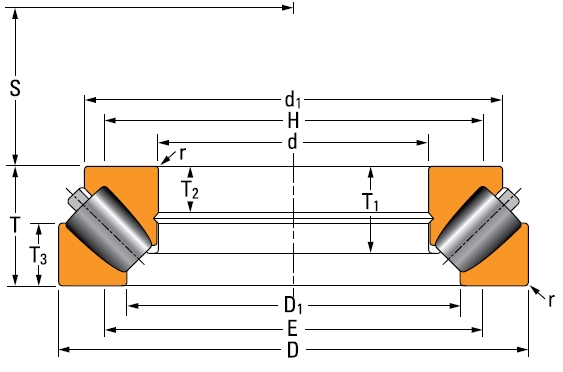

Dimensions
D - Outside Diameter
580 mm
d1 - Cone Outside Diameter
514 mm
D1 - Cup Bore
407 mm
E - Shoulder Diameter - Housing (Max)
444 mm
H - Shoulder Diameter - Shaft (Min)
469 mm
r - Fillet Radius
6 mm
S - Dimension
191 mm
T - Total Width
155 mm
T1 - Cage Position
112.17 mm
T2 - Groove Position
56.31 mm
T3 - Cup Width
80.5 mm
Basic Load Ratings
Static Load Rating
18909000 N
Dynamic Load Rating
5155000 N
Thermal Speed Rating
530 rpm
