Timken 29476EM
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
380 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
87796163119

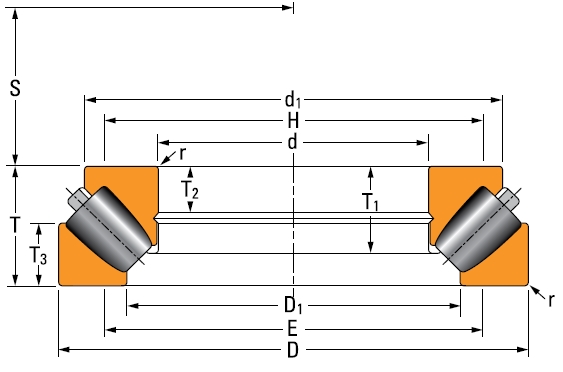

Dimensions
D - Outside Diameter
670 mm
d1 - Cone Outside Diameter
597 mm
D1 - Cup Bore
477 mm
E - Shoulder Diameter - Housing (Max)
518 mm
H - Shoulder Diameter - Shaft (Min)
546.11 mm
r - Fillet Radius
6 mm
S - Dimension
224 mm
T - Total Width
175 mm
T1 - Cage Position
126.5 mm
T2 - Groove Position
73.1 mm
T3 - Cup Width
91 mm
Basic Load Ratings
Static Load Rating
24870000 N
Dynamic Load Rating
6490000 N
Thermal Speed Rating
440 rpm
