Timken 29480EM
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
400 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
87796014527

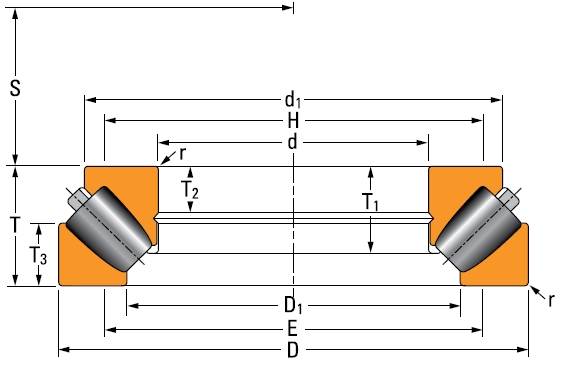

Dimensions
D - Outside Diameter
710 mm
d1 - Cone Outside Diameter
632 mm
D1 - Cup Bore
501 mm
E - Shoulder Diameter - Housing (Max)
547 mm
H - Shoulder Diameter - Shaft (Min)
577.1 mm
r - Fillet Radius
6 mm
S - Dimension
237 mm
T - Total Width
185 mm
T1 - Cage Position
134.9 mm
T2 - Groove Position
77.67 mm
T3 - Cup Width
97 mm
Basic Load Ratings
Static Load Rating
28470000 N
Dynamic Load Rating
7330000 N
Thermal Speed Rating
410 rpm
