Timken 29484EM

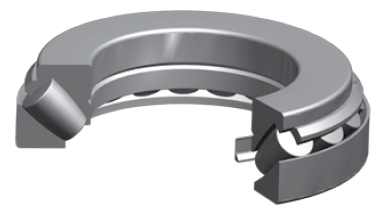

Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
420 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR

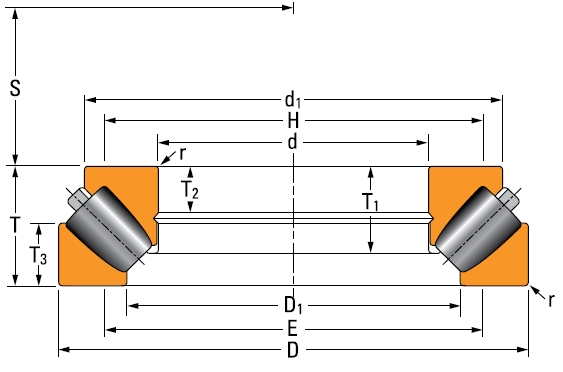

Dimensions
D - Outside Diameter
730 mm
d1 - Cone Outside Diameter
670 mm
D1 - Cup Bore
545 mm
E - Shoulder Diameter - Housing (Max)
576 mm
H - Shoulder Diameter - Shaft (Min)
608 mm
r - Fillet Radius
6 mm
S - Dimension
244 mm
T - Total Width
185 mm
T1 - Cage Position
133.4 mm
T2 - Groove Position
70 mm
T3 - Cup Width
90.5 mm
Basic Load Ratings
Static Load Rating
26000000 N
Dynamic Load Rating
6780000 N
Thermal Speed Rating
430 rpm
