Timken 29488EM

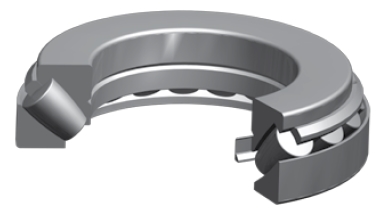

Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
440 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
Dimensions
D - Outside Diameter
780 mm
d1 - Cone Outside Diameter
694 mm
D1 - Cup Bore
554 mm
E - Shoulder Diameter - Housing (Max)
602 mm
H - Shoulder Diameter - Shaft (Min)
635 mm
r - Fillet Radius
8 mm
S - Dimension
257 mm
T - Total Width
206.03 mm
T1 - Cage Position
148.34 mm
T2 - Groove Position
89.01 mm
T3 - Cup Width
108 mm
Basic Load Ratings
Static Load Rating
33710000 N
Dynamic Load Rating
8610000 N
Thermal Speed Rating
370 rpm
