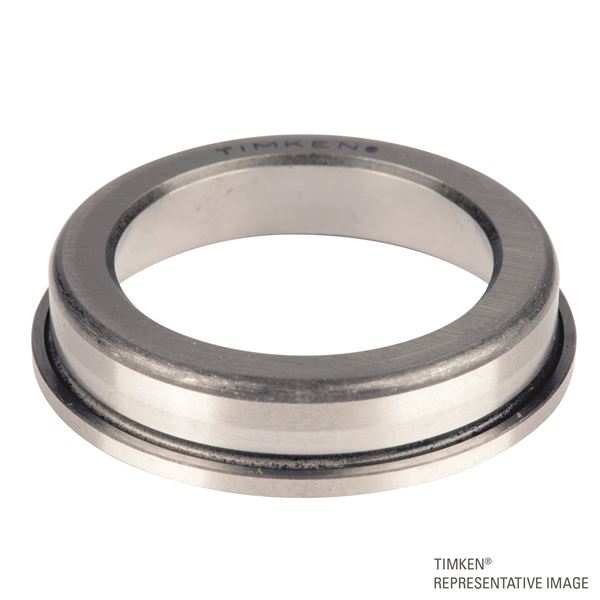

Timken 772-B
Tapered Roller Bearings - Single Flanged Cups - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
775
Cup Part Number
772-B
Design Units
Imperial

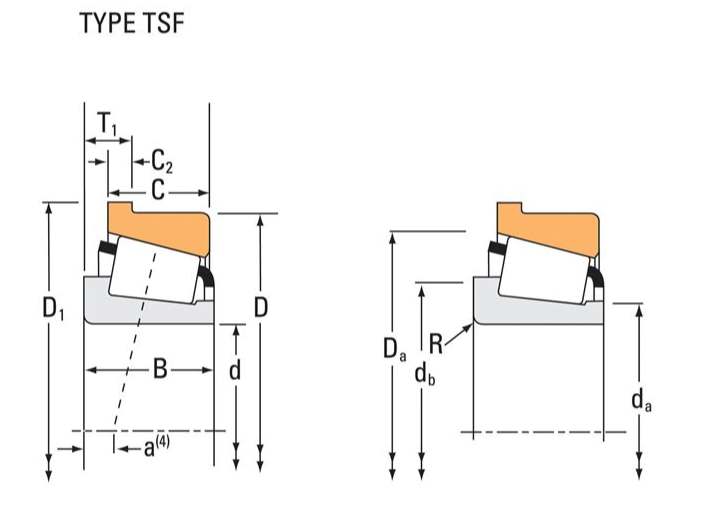

Dimensions
D - Cup Outer Diameter
180.975 mm
D1 - Flange Outer Diameter
188.798 mm
C - Cup Width
38.1 mm
C1 - Cup Flange Width
7.938 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
3.30 mm
Da - Cup Frontface Backing Diameter
168.90 mm
Factors
K - Factor2
1.51
e - ISO Factor3
0.39
Y - ISO Factor4
1.56
Cg - Geometry Factor5
0.107
