Timken 93708 – 93127CD
Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
93000
Cone Part Number
93708
Cup Part Number
93127CD
Design Unit
Inch
Cage Material
Stamped Steel
Related Assembly Number(s)
93708-90202

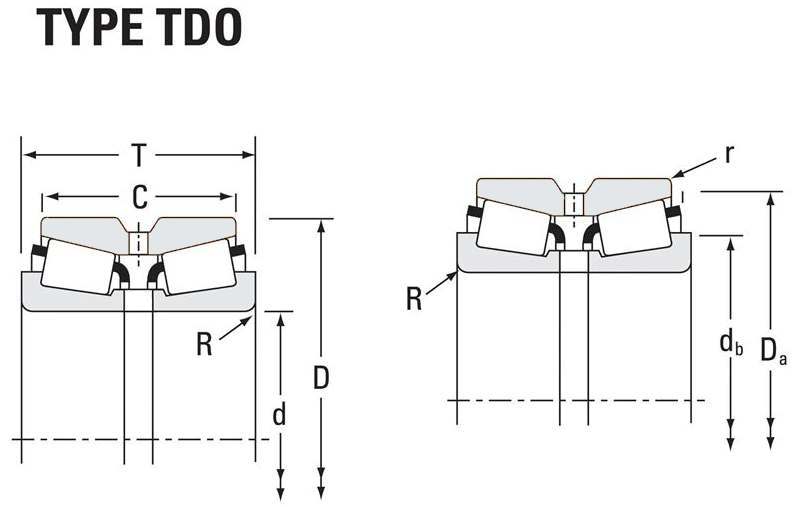

Dimensions
d - Bore
179.974 mm
D - Cup Outer Diameter
317.500 mm
B - Cone Width
63.5 mm
C - Double Cup Width
111.125 mm
T - Bearing Width across Cones
146.050 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.600 mm
r - Cup Backface "To Clear" Radius2
1.5 mm
db - Cone Backface Backing Diameter
209 mm
Da - Cup Frontface Backing Diameter
299.97 mm
Aa - Cage-Cone Backface Clearance
8.1 mm
a - Effective Center Location3
7.9 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)4
190000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)5
1270000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)6
330000 N
C7
170000 N
Factors
K - Factor8
1.12
e - ISO Factor9
0.52
Y1 - ISO Factor10
1.29
Y2 - ISO Factor11
1.92
Cg - Geometry Factor12
0.146
