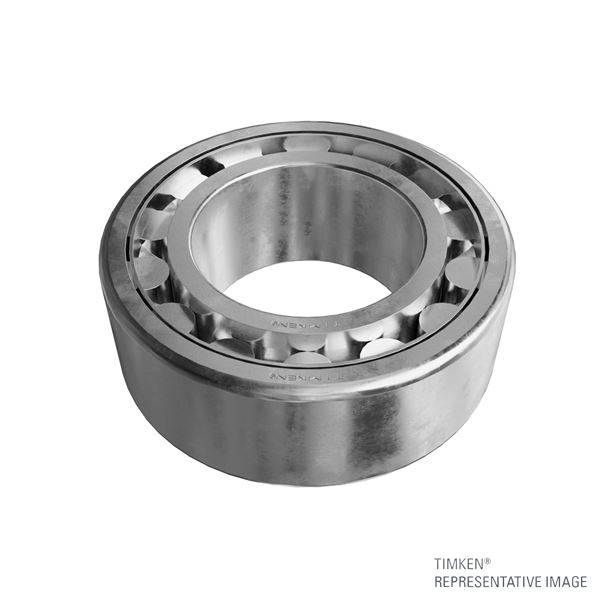

Timken A-5220-WS R6
Cylindrical Roller Radial Bearings - 5200, A5200 Metric Series
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
100 mm
Static Load Rating C
594000 N
Dynamic Load Rating C1
474000 N
Dimension S2
4.26 mm
Geometry Factor C3
0.131
Thermal Speed Ratings - Oil
2800 rpm
Thermal Speed Ratings - Grease
2500 rpm

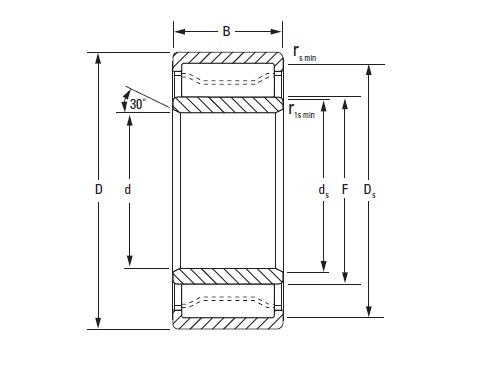

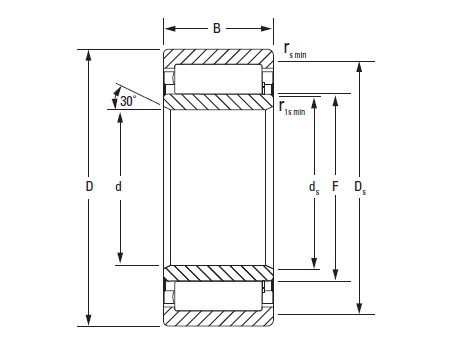

Bearing Dimensions
O.D. D
180 mm
Width B
60.325 mm
DUR/DOR F/E
121.133 mm
Type
WS
Mounting Data
Chamfer r
4.4 mm
Chamfer r4
2.1 mm
Backing Shaft Diameter d
117.1 mm
Backing Housing Diameter D
165.6 mm
