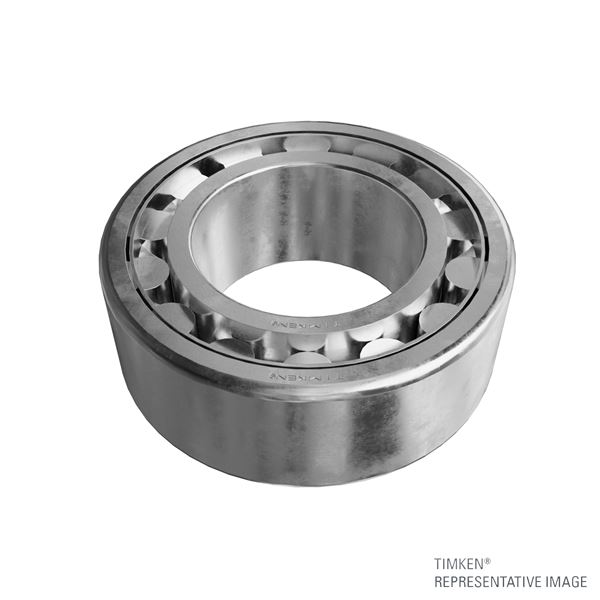

Timken A-5236-WS R6
Cylindrical Roller Radial Bearings - 5200, A5200 Metric Series
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
180 mm
Static Load Rating C
2130000 N
Dynamic Load Rating C1
1510000 N
Dimension S2
4.60 mm
Geometry Factor C3
0.178
Thermal Speed Ratings - Oil
1200 rpm
Thermal Speed Ratings - Grease
1100 rpm

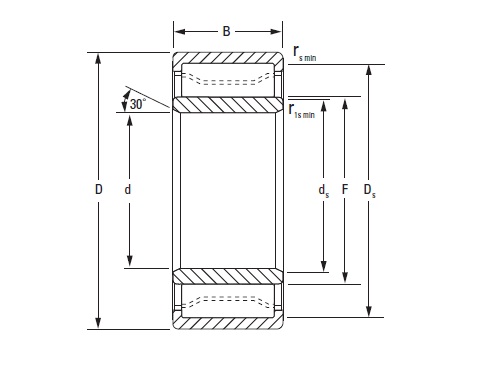

Bearing Dimensions
O.D. D
320 mm
Width B
107.95 mm
DUR/DOR F/E
216.441 mm
Type
WS
Mounting Data
Chamfer r
7.5 mm
Chamfer r4
4 mm
Backing Shaft Diameter d
209 mm
Backing Housing Diameter D
294.3 mm
