Timken A-5222-WS
Cylindrical Roller Radial Bearings - 5200, A5200 Metric Series
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
110 mm
Static Load Rating C
790000 N
Dynamic Load Rating C1
612000 N
Dimension S2
4.29 mm
Geometry Factor C3
0.1440
Thermal Speed Ratings - Oil
2400 rpm
Thermal Speed Ratings - Grease
2100 rpm

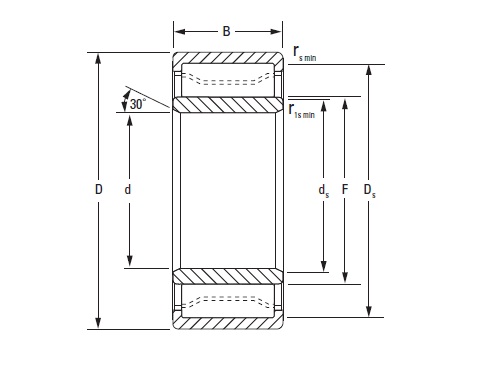

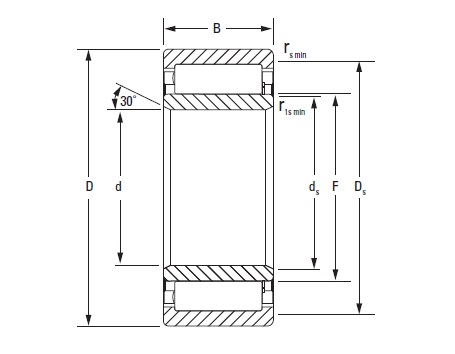

Bearing Dimensions
O.D. D
200 mm
Width B
69.85 mm
DUR/DOR F/E
133.078 mm
Type
WS
Mounting Data
Chamfer r
4.4 mm
Chamfer r4
2.1 mm
Backing Shaft Diameter d
128.8 mm
Backing Housing Diameter D
182.3 mm
