Timken EE224115 – 224205D
Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
224000
Cone Part Number
EE224115
Cup Part Number
224205D
Design Unit
Inch
Cage Material
Pin-Type
Related Assembly Number(s)
EE224115-90017

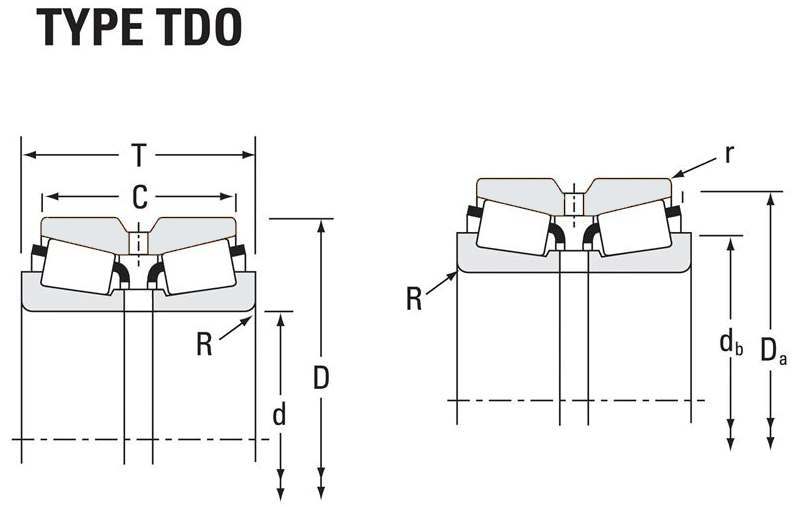

Dimensions
d - Bore
292.100 mm
D - Cup Outer Diameter
520.7 mm
B - Cone Width
107.950 mm
C - Double Cup Width
165.100 mm
T - Bearing Width across Cones
228.600 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
6.4 mm
r - Cup Backface "To Clear" Radius2
1.5 mm
db - Cone Backface Backing Diameter
331 mm
Da - Cup Frontface Backing Diameter
469.90 mm
Aa - Cage-Cone Backface Clearance
14 mm
a - Effective Center Location3
-19.8 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)4
506000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)5
3400000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)6
882000 N
C7
284000 N
Factors
K - Factor8
1.78
e - ISO Factor9
0.69
Y1 - ISO Factor10
0.98
Y2 - ISO Factor11
1.46
Cg - Geometry Factor12
0.178
