Timken EE91702 – 91113XD
Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
91000
Cone Part Number
EE91702
Cup Part Number
91113XD
Design Unit
Inch
Cage Material
Stamped Steel
Related Assembly Number(s)
EE91702-90018

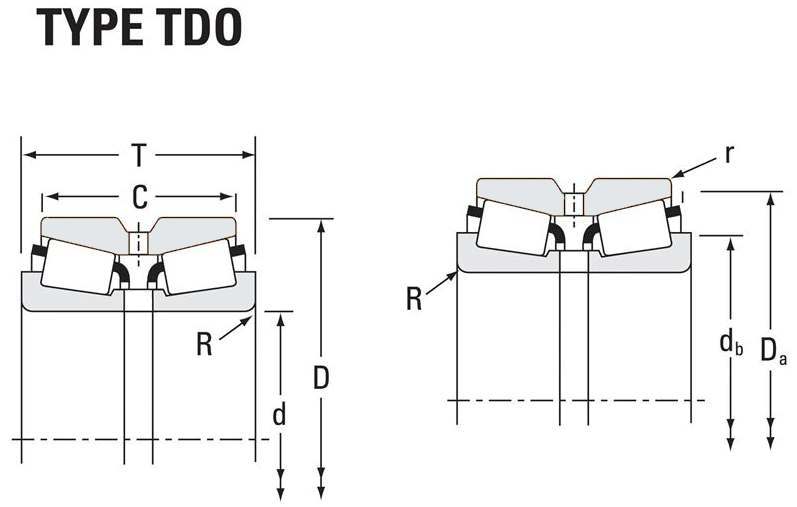

Dimensions
d - Bore
177.800 mm
D - Cup Outer Diameter
285.750 mm
B - Cone Width
63.5 mm
C - Double Cup Width
92.075 mm
T - Bearing Width across Cones
136.525 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
6.4 mm
r - Cup Backface "To Clear" Radius2
1.5 mm
db - Cone Backface Backing Diameter
204 mm
Da - Cup Frontface Backing Diameter
265.94 mm
Aa - Cage-Cone Backface Clearance
11.9 mm
a - Effective Center Location3
-4.6 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)4
127000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)5
853000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)6
221000 N
C7
94200 N
Factors
K - Factor8
1.35
e - ISO Factor9
0.95
Y1 - ISO Factor10
0.71
Y2 - ISO Factor11
1.06
Cg - Geometry Factor12
0.114
