Timken EE941205 – 941951XD
Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
940000
Cone Part Number
EE941205
Cup Part Number
941951XD
Design Unit
Inch
Cage Material
Pin-Type
Related Assembly Number(s)
EE941205-90016

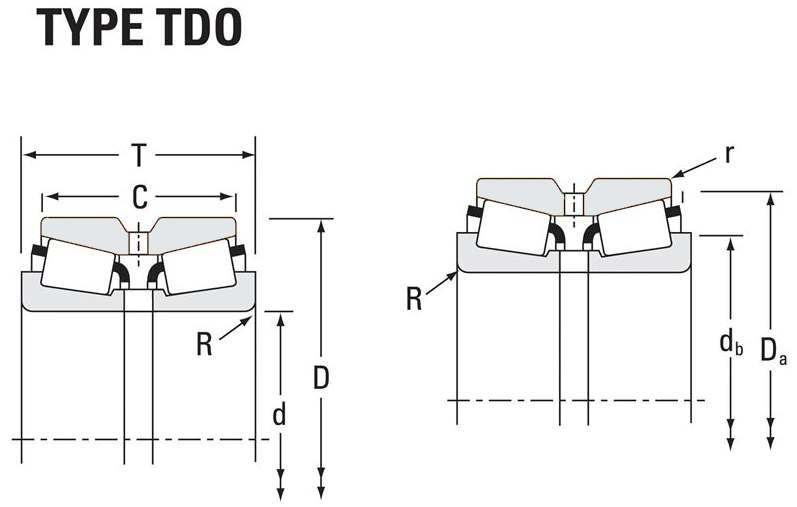

Dimensions
d - Bore
304.8 mm
D - Cup Outer Diameter
495.300 mm
B - Cone Width
74.613 mm
C - Double Cup Width
120.650 mm
T - Bearing Width across Cones
162.245 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
6.4 mm
r - Cup Backface "To Clear" Radius2
1.5 mm
db - Cone Backface Backing Diameter
339 mm
Da - Cup Frontface Backing Diameter
464.10 mm
Aa - Cage-Cone Backface Clearance
9.4 mm
a - Effective Center Location3
9.1 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)4
402000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)5
2700000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)6
700000 N
C7
277000 N
Factors
K - Factor8
1.45
e - ISO Factor9
0.87
Y1 - ISO Factor10
0.78
Y2 - ISO Factor11
1.16
Cg - Geometry Factor12
0.166
