Timken HH249949 – HH249910 (HH249910ES)
Tapered Roller Bearings - 2TS-DM (Matched Bearing Assembly, Direct Mount)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
HH249949 – HH249910 (HH249910ES)
Specifications
Cone Part Number
HH249949
Cup Part Number
HH249910
Related Assembly Number(s)
HH249949-90026
Outer Spacer Part Number
HH249910ES
Design Unit
Inch

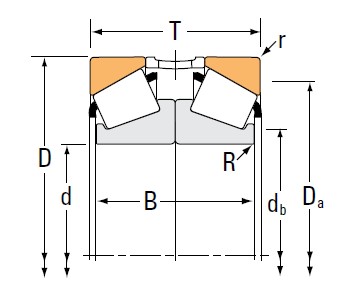

Dimensions
d - Bore
247.650 mm
D - Cup Outer Diameter
406.400 mm
T - Width
231.775 mm
B - Width
234.95 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
1.5 mm
r - Cup Backface "To Clear" Radius2
6.35 mm
db - Cone Backface Backing Diameter
284 mm
Da - Cup Frontface Backing Diameter
383.54 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
539000 N
C1 - Dynamic Radial Rating (1 million revolutions)4
3620000 N
C5
307000 N
C906
939000 N
Factors
K - Factor7
1.76
e - ISO Factor8
0.33
Y1 - ISO Factor9
2.03
Y2 - ISO Factor10
3.02
