Timken LM869448 – LM869410 (LM869410EB)
Tapered Roller Bearings - 2TS-DM (Matched Bearing Assembly, Direct Mount)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
LM869448 – LM869410 (LM869410EB)
Specifications
Cone Part Number
LM869448
Cup Part Number
LM869410
Related Assembly Number(s)
LM869448-90073
Outer Spacer Part Number
LM869410EB
Design Unit
Inch

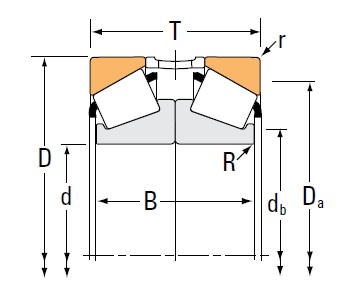

Dimensions
d - Bore
431.800 mm
D - Cup Outer Diameter
571.500 mm
T - Width
149.225 mm
B - Width
149.224 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
1.5 mm
r - Cup Backface "To Clear" Radius2
3.30 mm
db - Cone Backface Backing Diameter
457 mm
Da - Cup Frontface Backing Diameter
548.90 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
319000 N
C1 - Dynamic Radial Rating (1 million revolutions)4
2140000 N
C5
298000 N
C906
555000 N
Factors
K - Factor7
1.07
e - ISO Factor8
0.55
Y1 - ISO Factor9
1.24
Y2 - ISO Factor10
1.84
