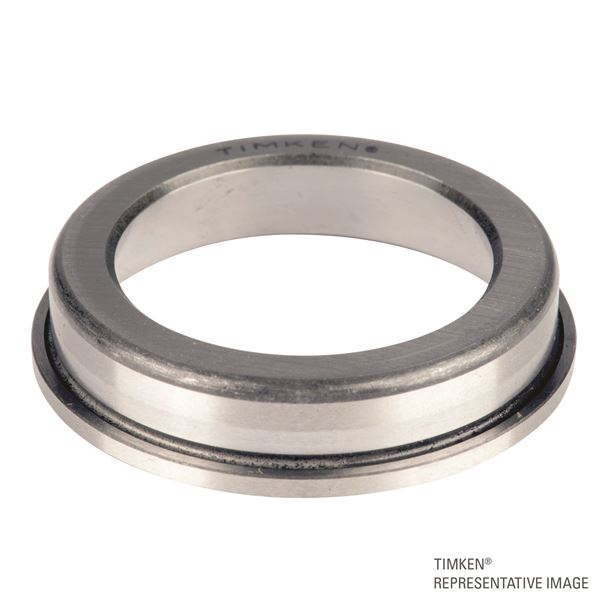

Timken JL848815-B
Tapered Roller Bearings - Single Flanged Cups - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
L848800
Cup Part Number
JL848815-B
Design Units
Imperial

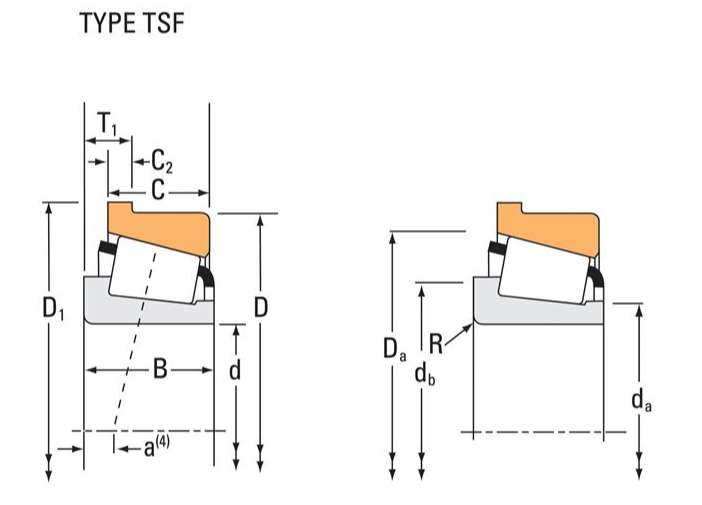

Dimensions
D - Cup Outer Diameter
329.999 mm
D1 - Flange Outer Diameter
342.001 mm
C - Cup Width
27.998 mm
C1 - Cup Flange Width
5.999 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
3.30 mm
Da - Cup Frontface Backing Diameter
321.06 mm
Factors
K - Factor2
1.05
e - ISO Factor3
0.56
Y - ISO Factor4
1.07
Cg - Geometry Factor5
0.144
