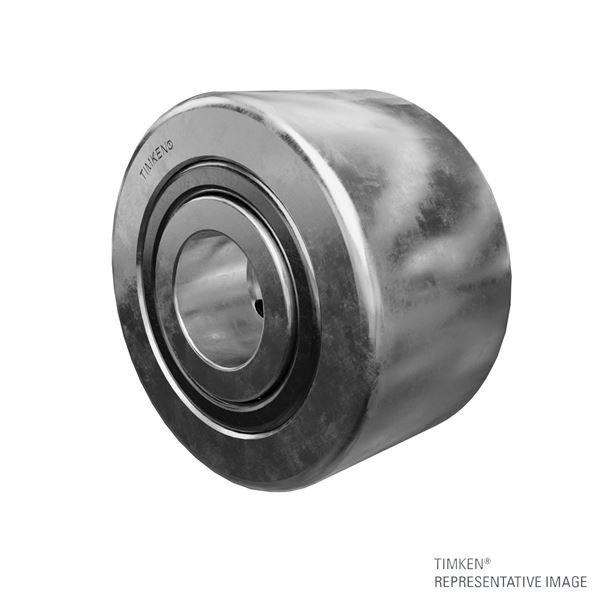

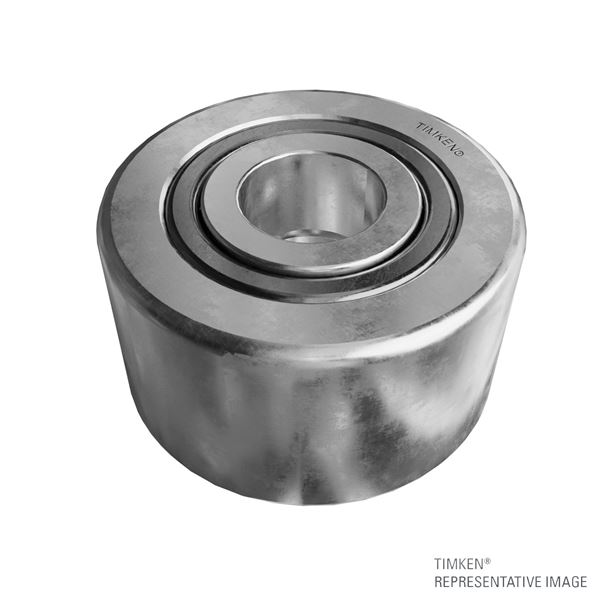

Timken L357049NW – L357010CD
Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
Detailed data of
L357049NW – L357010CD
Specifications
Series
L357000
Cone Part Number
L357049NW
Cup Part Number
L357010CD
Design Unit
Inch
Cage Material
Stamped Steel
Dimensions
d - Bore
304.8 mm
D - Cup Outer Diameter
393.7 mm
B - Cone Width
53.975 mm
C - Double Cup Width
82.55 mm
T - Bearing Width across Cones
107.950 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
6.35 mm
r - Cup Backface "To Clear" Radius2
1.5 mm
db - Cone Backface Backing Diameter
329 mm
Da - Cup Frontface Backing Diameter
383.00 mm
Aa - Cage-Cone Backface Clearance
4.6 mm
a - Effective Center Location3
12.7 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)4
152000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)5
1020000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)6
265000 N
C7
93500 N
Factors
K - Factor8
1.63
e - ISO Factor9
0.36
Y1 - ISO Factor10
1.88
Y2 - ISO Factor11
2.8
