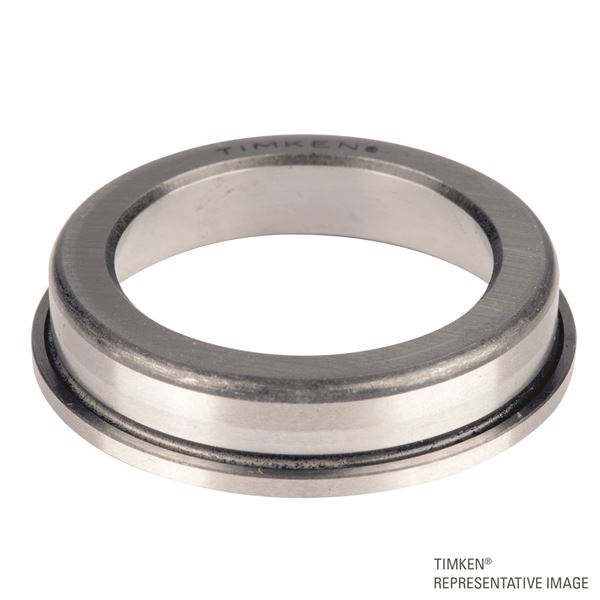

Timken L853011-B
Tapered Roller Bearings - Single Flanged Cups - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
L853000
Cup Part Number
L853011-B
Design Units
Imperial

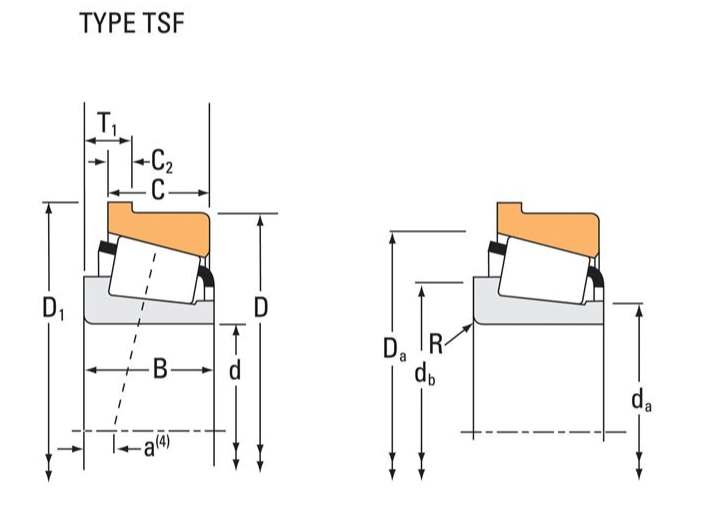

Dimensions
D - Cup Outer Diameter
349.949 mm
D1 - Flange Outer Diameter
357.950 mm
C - Cup Width
23.813 mm
C1 - Cup Flange Width
5.999 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
3.30 mm
Da - Cup Frontface Backing Diameter
342.90 mm
Factors
K - Factor2
1.08
e - ISO Factor3
0.54
Y - ISO Factor4
1.11
Cg - Geometry Factor5
0.152
