Timken LM251649NW – LM251610D

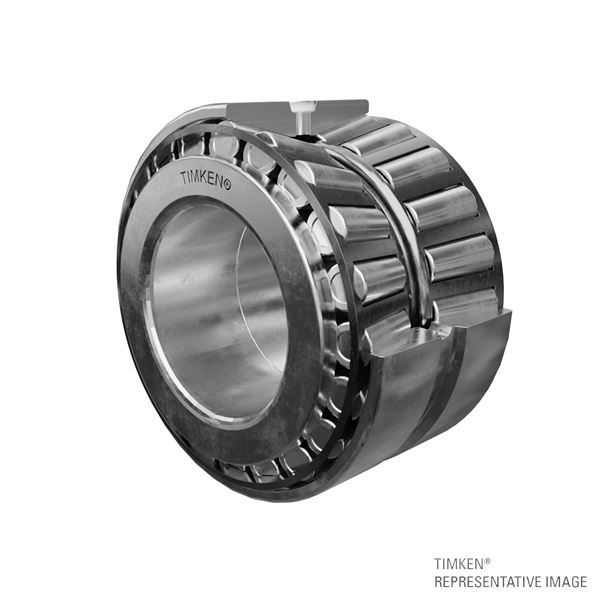

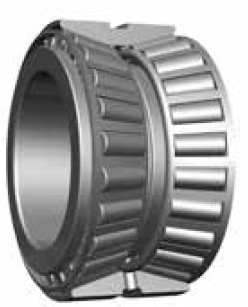

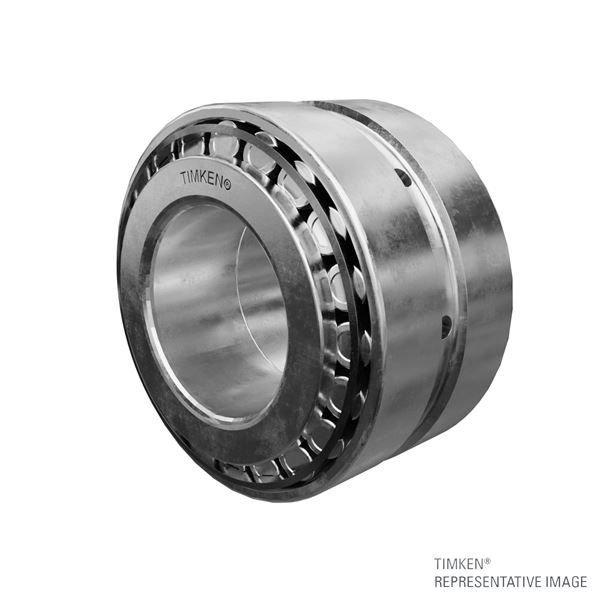

Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial
(BRAND):TIMKEN
(Availability):In Stock

Detailed data of

LM251649NW – LM251610D

Specifications

Series LM251600
Cone Part Number LM251649NW
Cup Part Number LM251610D
Design Unit Inch
Cage Material Stamped Steel

Dimensions

d - Bore 266.7 mm
D - Cup Outer Diameter 352.425 mm
B - Cone Width 53.975 mm
C - Double Cup Width 82.55 mm
T - Bearing Width across Cones 107.950 mm

Abutment and Fillet Dimensions

R - Cone Backface "To Clear" Radius1 6.35 mm
r - Cup Backface "To Clear" Radius2 1.524 mm
db - Cone Backface Backing Diameter 291.0 mm
Da - Cup Frontface Backing Diameter 340.106 mm
Aa - Cage-Cone Backface Clearance 4.6 mm
a - Effective Center Location3 4.1 mm

Basic Load Ratings

C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)4 147000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)5 985000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)6 255000 N
C7 80100 N

Factors

K - Factor8 1.83
e - ISO Factor9 0.32
Y1 - ISO Factor10 2.12
Y2 - ISO Factor11 3.15
