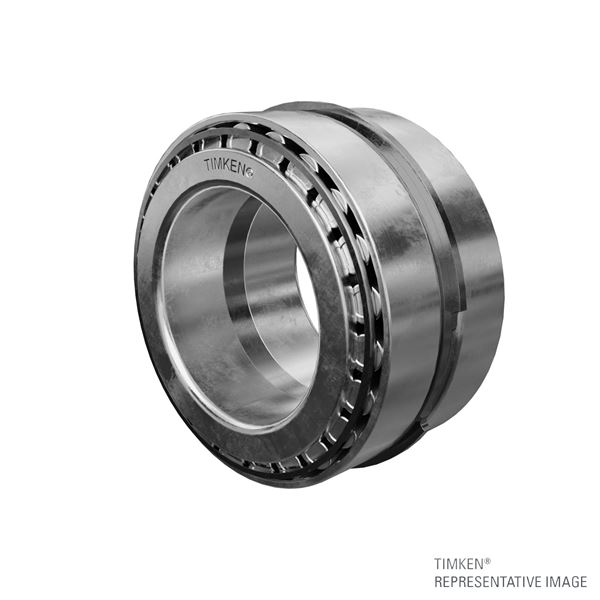

Timken LM806649 – LM806610 (K114294R – K114295R)
Tapered Roller Bearings - 2S (Matched Bearing Assembly, with snap ring spacer)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
LM806649 – LM806610 (K114294R – K114295R)
Specifications
Cone Part Number
LM806649
Cup Part Number
LM806610
Inner Spacer Part Number
K114294R
Outer Spacer Part Number
K114295R
Design Unit
Inch

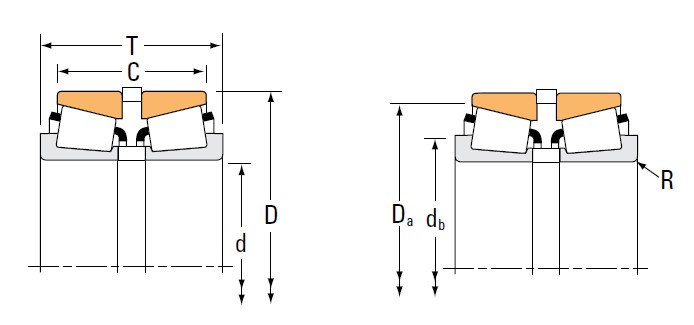

Dimensions
d - Bore
53.975 mm
D - Cup Outer Diameter
88.900 mm
T - Width
43.637 mm
C - Width
32.522 mm
Snap Ring Diameter
92.61 mm
Snap Ring Width
5.54 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
2.290 mm
r - Cup Backface "To Clear" Radius2
2.03 mm
db - Cone Backface Backing Diameter
65 mm
Da - Cup Frontface Backing Diameter
85.10 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)
17000 N
C1 - Dynamic Radial Rating (1 million revolutions)3
114000 N
C4
15900 N
C905
29500 N
Factors
K - Factor6
1.07
e - ISO Factor7
0.55
Y1 - ISO Factor8
1.24
Y2 - ISO Factor9
1.84
