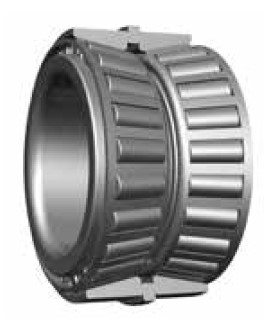

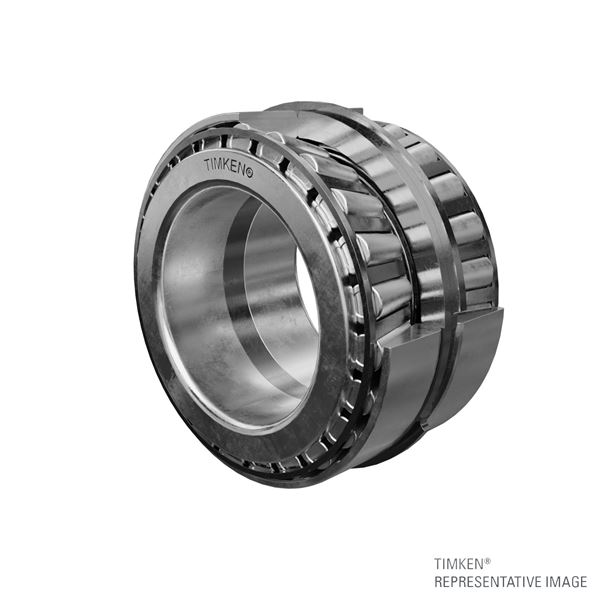

Timken LM11749 – LM11710 (K106398R – K106397R)
Tapered Roller Bearings - 2S (Matched Bearing Assembly, with snap ring spacer)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
LM11749 – LM11710 (K106398R – K106397R)
Specifications
Cone Part Number
LM11749
Cup Part Number
LM11710
Inner Spacer Part Number
K106398R
Outer Spacer Part Number
K106397R
Design Unit
Inch
Dimensions
d - Bore
17.463 mm
D - Cup Outer Diameter
39.878 mm
T - Width
30.226 mm
C - Width
23.876 mm
Snap Ring Diameter
41.91 mm
Snap Ring Width
2.54 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
1.270 mm
r - Cup Backface "To Clear" Radius2
1.27 mm
db - Cone Backface Backing Diameter
24 mm
Da - Cup Frontface Backing Diameter
37.59 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)
7610 N
C1 - Dynamic Radial Rating (1 million revolutions)3
51100 N
C4
3730 N
C905
13300 N
Factors
K - Factor6
2.04
e - ISO Factor7
0.29
Y1 - ISO Factor8
2.36
Y2 - ISO Factor9
3.51
