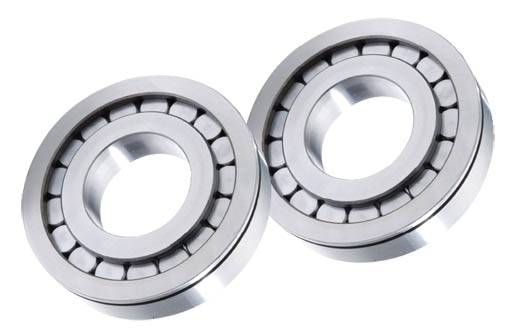

Timken NCF1840V
Cylindrical Roller Radial Bearings - Full Complement
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
200 mm
Static Load Rating C
337000 N
Dynamic Load Rating C11
188000 N
Dimension S2
1.80 mm
Geometry Factor C3
0.1460
Thermal Speed Ratings - Oil
740 rpm
Thermal Speed Ratings - Grease
610 rpm

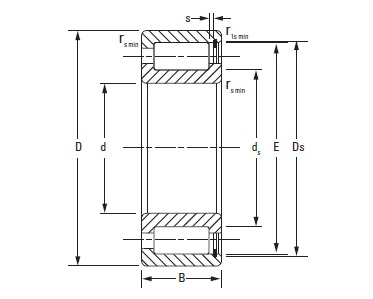

Bearing Dimensions
O.D. D
250 mm
Width B
24 mm
DUR/DOR F/E
237.5 mm
Mounting Data
Chamfer r
1.5 mm
Chamfer r4
1.1 mm
Backing Shaft Diameter d
211.5 mm
Backing Housing Diameter D
238.5 mm
