Timken NCF29/500V
Cylindrical Roller Radial Bearings - Full Complement
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
500 mm
Static Load Rating C
5060000 N
Dynamic Load Rating C11
2610000 N
Dimension S2
6.00 mm
Geometry Factor C3
0.2740
Thermal Speed Ratings - Oil
220 rpm
Thermal Speed Ratings - Grease
200 rpm

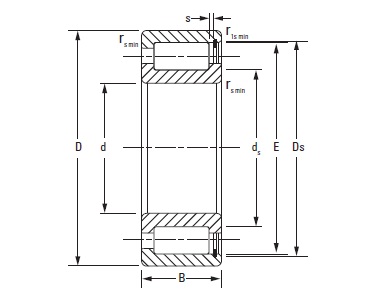

Bearing Dimensions
O.D. D
670 mm
Width B
100 mm
DUR/DOR F/E
630.9 mm
Mounting Data
Chamfer r
5 mm
Chamfer r4
5 mm
Backing Shaft Diameter d
534.9 mm
Backing Housing Diameter D
632.5 mm
