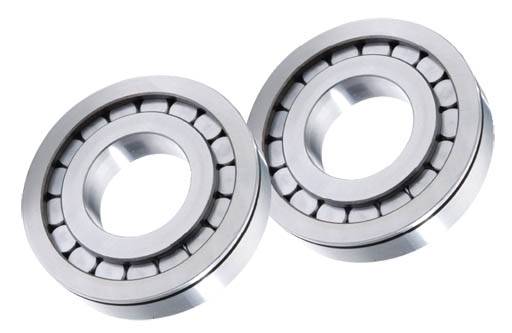

Timken NCF2922V
Cylindrical Roller Radial Bearings - Full Complement
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
110 mm
Static Load Rating C
223000 N
Dynamic Load Rating C11
146000 N
Dimension S2
1.5 mm
Geometry Factor C3
0.136
Thermal Speed Ratings - Oil
1200 rpm
Thermal Speed Ratings - Grease
1000 rpm

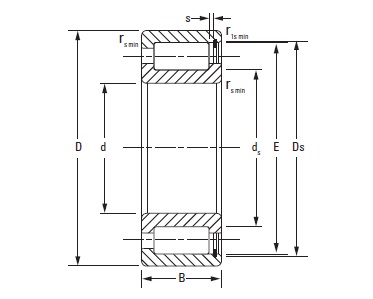

Bearing Dimensions
O.D. D
150 mm
Width B
24 mm
DUR/DOR F/E
141.1 mm
Mounting Data
Chamfer r
1.1 mm
Chamfer r4
1 mm
Backing Shaft Diameter d
119.1 mm
Backing Housing Diameter D
142.1 mm
