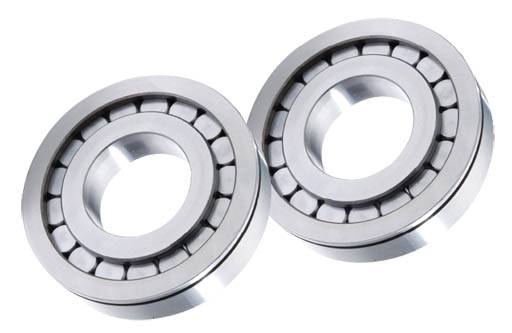

Timken NCF2926VC3
Cylindrical Roller Radial Bearings - Full Complement
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
130 mm
Static Load Rating C
361000 N
Dynamic Load Rating C11
225000 N
Dimension S2
2 mm
Geometry Factor C3
0.16
Thermal Speed Ratings - Oil
1100 rpm
Thermal Speed Ratings - Grease
920 rpm

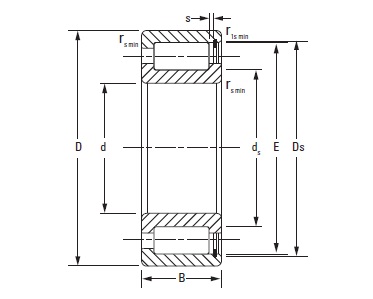

Bearing Dimensions
O.D. D
180 mm
Width B
30 mm
DUR/DOR F/E
166.8 mm
Mounting Data
Chamfer r
1.5 mm
Chamfer r4
1.1 mm
Backing Shaft Diameter d
140.8 mm
Backing Housing Diameter D
167.5 mm
