Timken NCF2936V
Cylindrical Roller Radial Bearings - Full Complement
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
180 mm
Static Load Rating C
711000 N
Dynamic Load Rating C11
436000 N
Dimension S2
2.5 mm
Geometry Factor C3
0.123
Thermal Speed Ratings - Oil
850 rpm
Thermal Speed Ratings - Grease
710 rpm

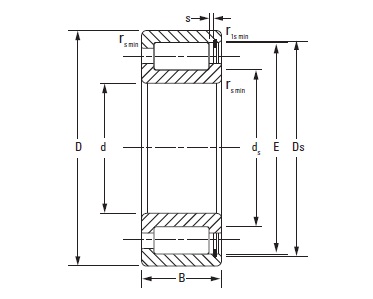

Bearing Dimensions
O.D. D
250 mm
Width B
42 mm
DUR/DOR F/E
231.5 mm
Mounting Data
Chamfer r
2 mm
Chamfer r4
1.1 mm
Backing Shaft Diameter d
193.5 mm
Backing Housing Diameter D
232.5 mm
