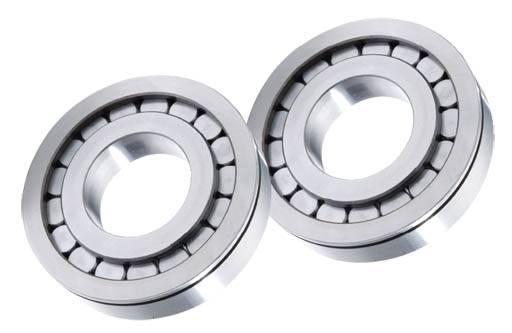

Timken NCF2940VC3
Cylindrical Roller Radial Bearings - Full Complement
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
200 mm
Static Load Rating C
971000 N
Dynamic Load Rating C11
587000 N
Dimension S2
1.95 mm
Geometry Factor C3
0.137
Thermal Speed Ratings - Oil
730 rpm
Thermal Speed Ratings - Grease
620 rpm

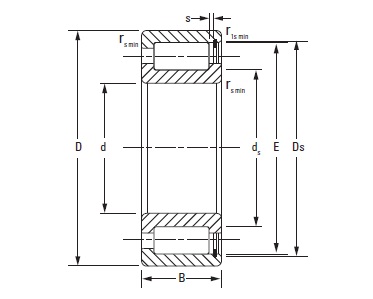

Bearing Dimensions
O.D. D
280 mm
Width B
48 mm
DUR/DOR F/E
261.1 mm
Mounting Data
Chamfer r
2.1 mm
Chamfer r4
1.5 mm
Backing Shaft Diameter d
217.1 mm
Backing Housing Diameter D
262 mm
