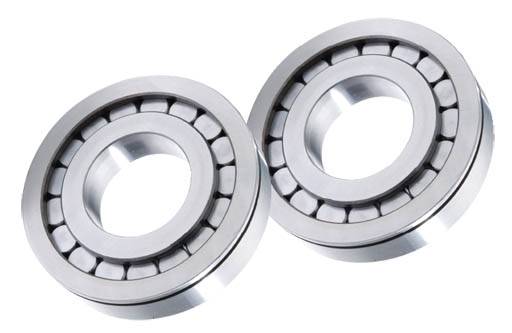

Timken NCF2964V
Cylindrical Roller Radial Bearings - Full Complement
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
320.000 mm
Static Load Rating C
2400000 N
Dynamic Load Rating C11
1300000 N
Dimension S2
4.00 mm
Geometry Factor C3
0.199
Thermal Speed Ratings - Oil
400 rpm
Thermal Speed Ratings - Grease
340 rpm

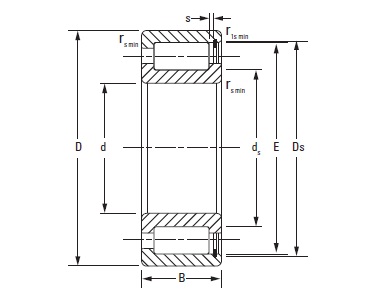

Bearing Dimensions
O.D. D
440 mm
Width B
72 mm
DUR/DOR F/E
410.5 mm
Mounting Data
Chamfer r
3 mm
Chamfer r4
3 mm
Backing Shaft Diameter d
346.5 mm
Backing Housing Diameter D
412 mm
