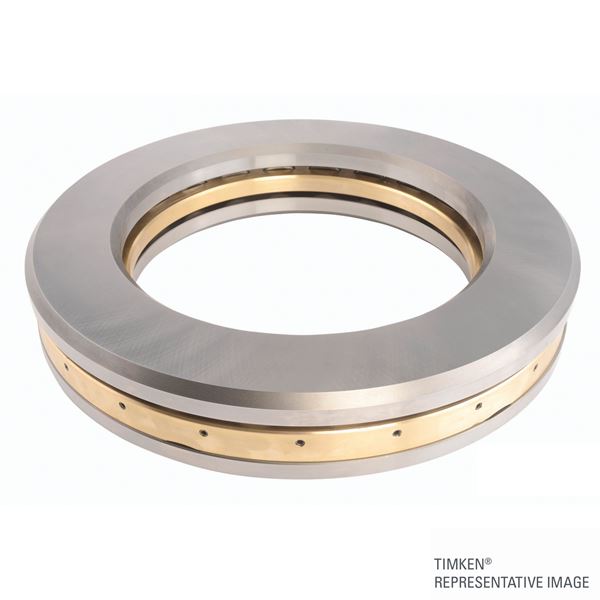

Timken S-4792-A
Thrust Cylindrical Roller Bearing-Type TP
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore Diameter
622.3 mm
Bearing Type
Thrust Cylindrical Roller Bearings - TP
Note
Bearing includes special features; click on
Dimensions
D - Bearing O.D.
812.800 mm
T - Bearing Width
114.3 mm
T1 - Bearing Width
28.58 mm
d1 - Large Bore I.D.
622.3 mm
D1 - Small Diameter O.D.
812.8 mm
E - Shoulder Diameter - Housing
679.5 mm
H - Shoulder Diameter - Shaft
774.7 mm
r - Fillet Chamfer
5.60 mm
Basic Load Ratings
Static Load Rating
11861000 N
Dynamic Load Rating
5111000 N
Limiting Speed
500 rpm
