Timken E-2306-A
Thrust Cylindrical Roller Bearing-Type TP
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore Diameter
610.019 mm
Bearing Type
Thrust Cylindrical Roller Bearings - TP

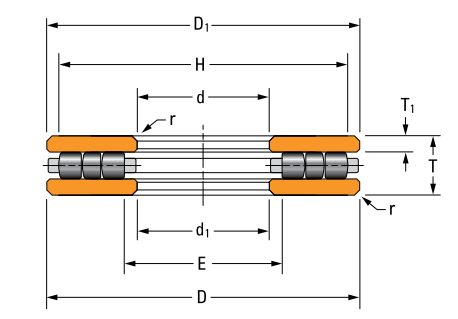

Dimensions
D - Bearing O.D.
812.546 mm
T - Bearing Width
101.727 mm
T1 - Bearing Width
27.79 mm
d1 - Large Bore I.D.
610.11 mm
D1 - Small Diameter O.D.
812.8 mm
E - Shoulder Diameter - Housing
635 mm
H - Shoulder Diameter - Shaft
787.4 mm
r - Fillet Chamfer
6.4 mm
Basic Load Ratings
Static Load Rating
23100000 N
Dynamic Load Rating
3690000 N
Limiting Speed
440 rpm
