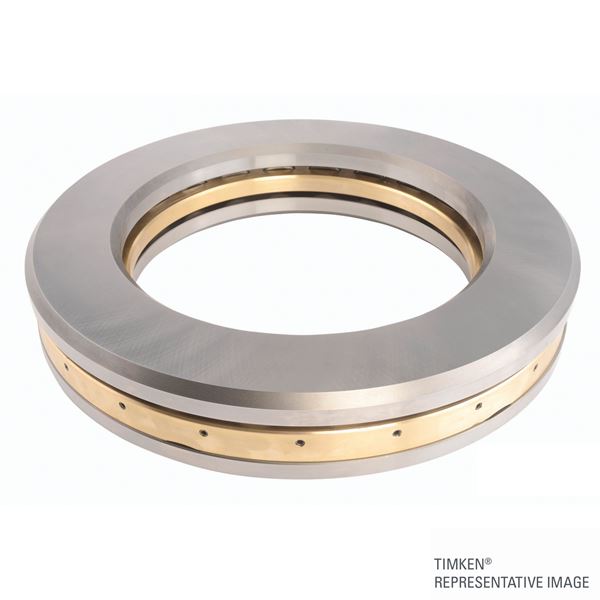

Timken E-2408-A
Thrust Cylindrical Roller Bearing-Type TP
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore Diameter
711.2 mm
Bearing Type
Thrust Cylindrical Roller Bearings - TP
Dimensions
D - Bearing O.D.
914.400 mm
T - Bearing Width
114.3 mm
T1 - Bearing Width
29.36 mm
d1 - Large Bore I.D.
711.84 mm
D1 - Small Diameter O.D.
914.4 mm
E - Shoulder Diameter - Housing
737.6 mm
H - Shoulder Diameter - Shaft
888.7 mm
r - Fillet Chamfer
4 mm
Basic Load Ratings
Static Load Rating
16241000 N
Dynamic Load Rating
4280000 N
Limiting Speed
430 rpm
