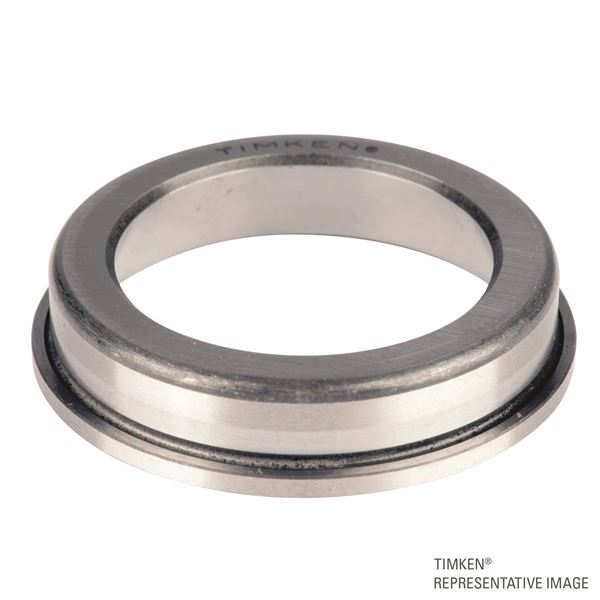

Timken Y32312-BRM
Tapered Roller Bearings - Single Flanged Cups - Metric
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
32312-BM
Cup Part Number
Y32312-BRM
Design Units
METRIC

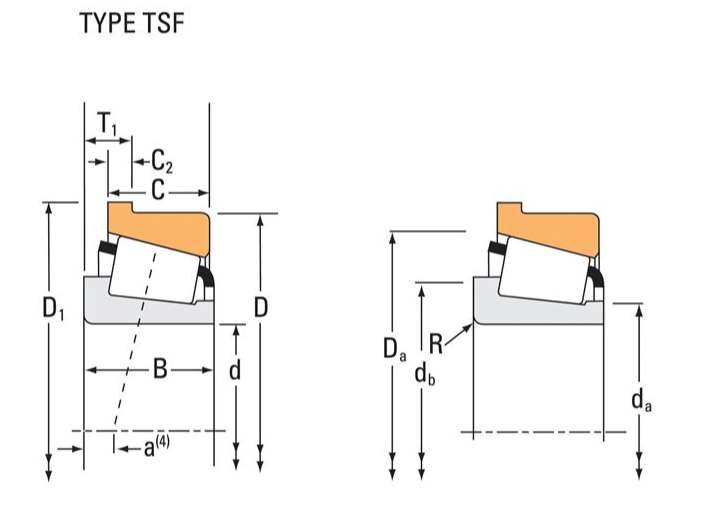

Dimensions
D - Cup Outer Diameter
130 mm
D1 - Flange Outer Diameter
137.000 mm
C - Cup Width
37 mm
C1 - Cup Flange Width
8.000 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
2.5 mm
Da - Cup Frontface Backing Diameter
121.92 mm
Factors
K - Factor2
1.07
e - ISO Factor3
0.55
Y - ISO Factor4
1.1
Cg - Geometry Factor5
0.0852
