Timken YA31310RM
Tapered Roller Bearings - Single Flanged Cups - Metric
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
31310
Cup Part Number
YA31310RM
Design Units
METRIC

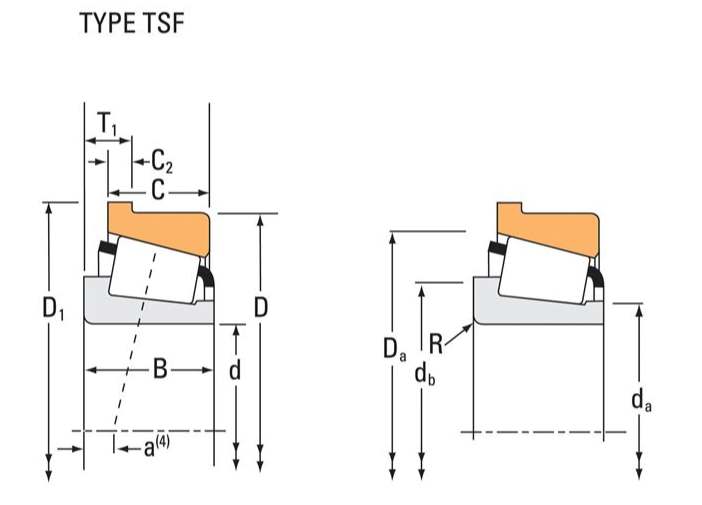

Dimensions
D - Cup Outer Diameter
110 mm
D1 - Flange Outer Diameter
116.000 mm
C - Cup Width
19 mm
C1 - Cup Flange Width
5.000 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
2 mm
Da - Cup Frontface Backing Diameter
108.97 mm
Factors
K - Factor2
0.71
e - ISO Factor3
0.83
Y - ISO Factor4
0.73
Cg - Geometry Factor5
0.069
