FAG 1207-TVH-C3

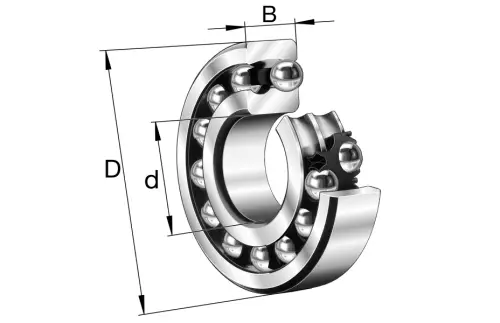

Self-aligning ball bearing 12..-TVH, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

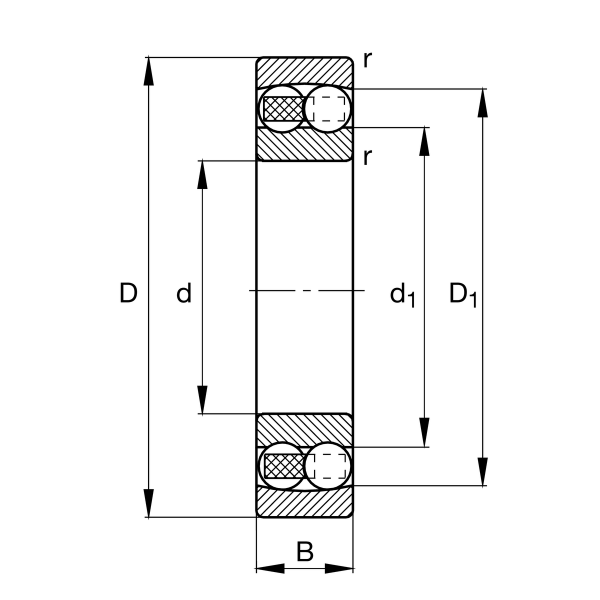

Main Dimensions & Performance Data
d
35 mm
Bore diameter
D
72 mm
Outside diameter
B
17 mm
Width
Cr
16,000 N
Basic dynamic load rating, radial
C0r
5,100 N
Basic static load rating, radial
Cur
325 N
Fatigue load limit, radial
CG
11,600 1/min
Limiting speed
nϑr
9,800 1/min
Reference speed
≈m
0.32 kg
Weight

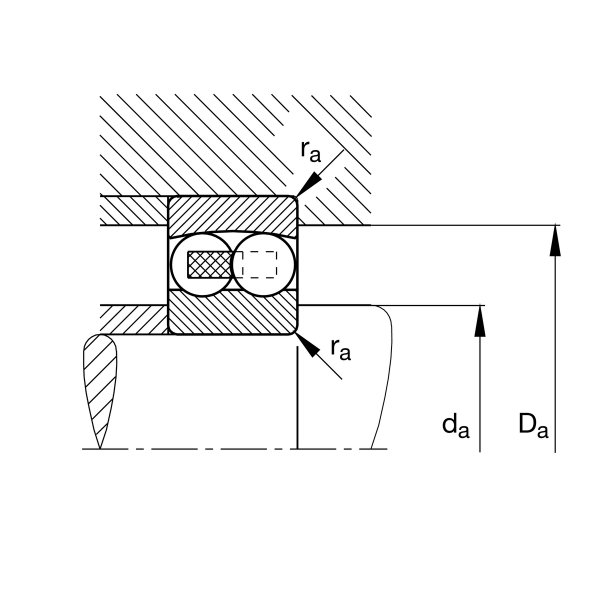

Mounting dimensions
da min
42 mm
Minimum diameter shaft shoulder
da min
65 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
