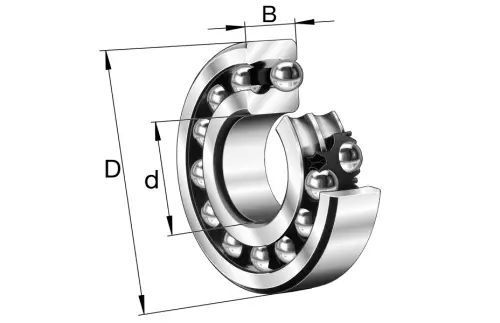

FAG 1217-TVH>N
Self-Aligning Ball Bearings
Self-aligning ball bearing 12..-TVH, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

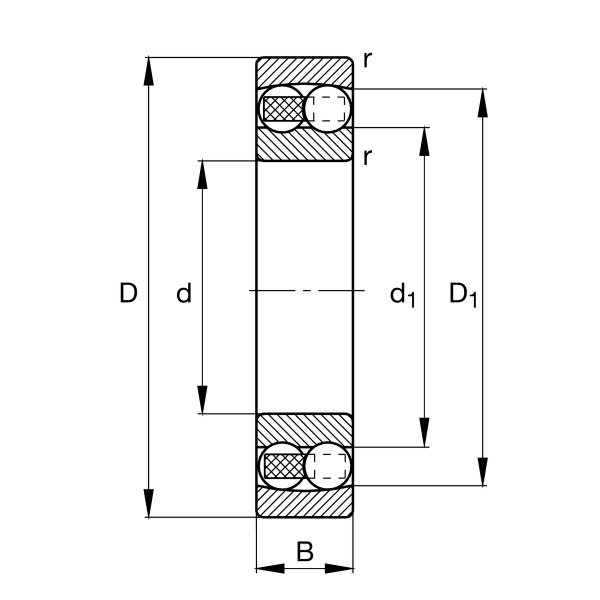

Main Dimensions & Performance Data
d
85 mm
Bore diameter
D
150 mm
Outside diameter
B
28 mm
Width
Cr
49,500 N
Basic dynamic load rating, radial
C0r
20,800 N
Basic static load rating, radial
Cur
1,210 N
Fatigue load limit, radial
CG
4,900 1/min
Limiting speed
nϑr
4,950 1/min
Reference speed
≈m
2.06 kg
Weight

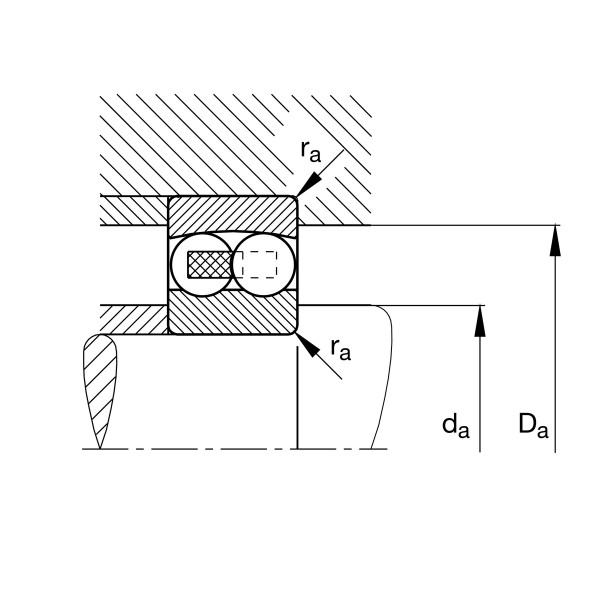

Mounting dimensions
da min
96 mm
Minimum diameter shaft shoulder
da min
139 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum fillet radius
