FAG 1218-K-TVH-C3
Self-Aligning Ball Bearings
Self-aligning ball bearing 12..-K-TVH, tapered bore taper 1:12, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

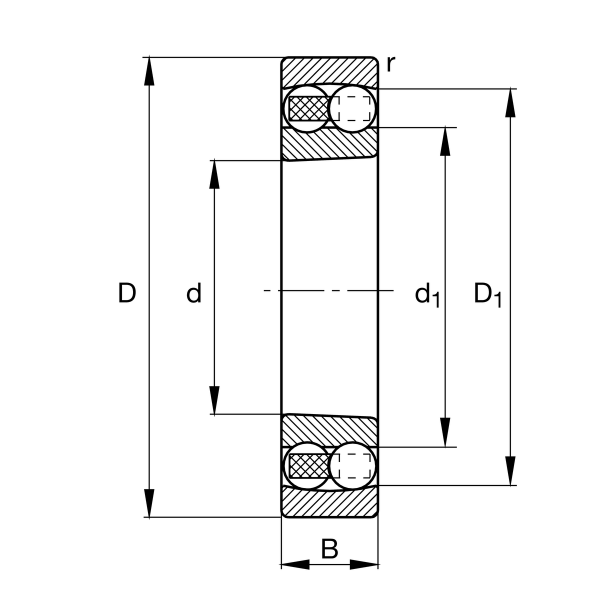

Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
160 mm
Outside diameter
B
30 mm
Width
Cr
57,000 N
Basic dynamic load rating, radial
C0r
23,500 N
Basic static load rating, radial
Cur
1,330 N
Fatigue load limit, radial
CG
4,550 1/min
Limiting speed
nϑr
4,850 1/min
Reference speed
≈m
2.48 kg
Weight

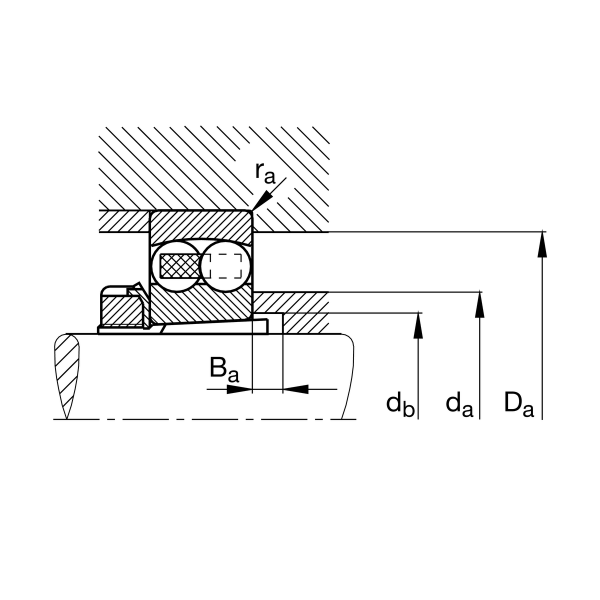

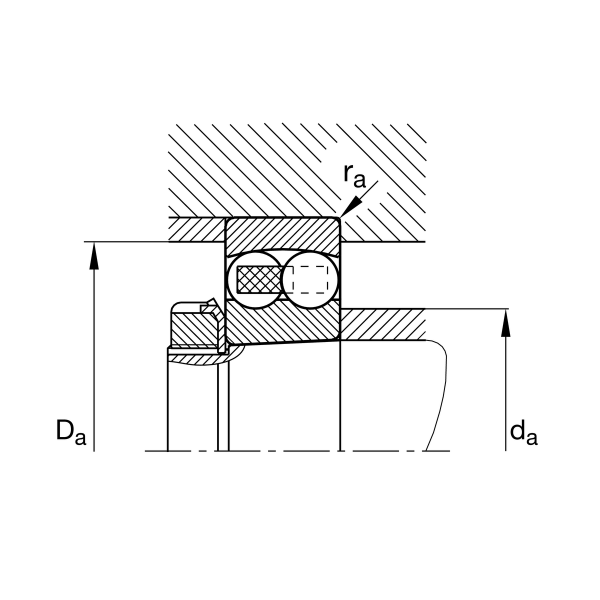

Mounting dimensions
da min
101 mm
Minimum diameter shaft shoulder
da max
110 mm
Maximum diameter shaft shoulder
da min
149 mm
Maximum diameter of housing shoulder
db min
95 mm
Minimum cavity diameter of the sleeve
Ba min
7 mm
Minimum cavity width of the sleeve
ra max
2 mm
Maximum fillet radius
