FAG 1224-M-C3
Self-Aligning Ball Bearings
Self-aligning ball bearing 12..-M, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
215 mm
Outside diameter
B
42 mm
Width
Cr
121,000 N
Basic dynamic load rating, radial
C0r
53,000 N
Basic static load rating, radial
Cur
2,600 N
Fatigue load limit, radial
CG
4,750 1/min
Limiting speed
nϑr
4,200 1/min
Reference speed
≈m
6.88 kg
Weight

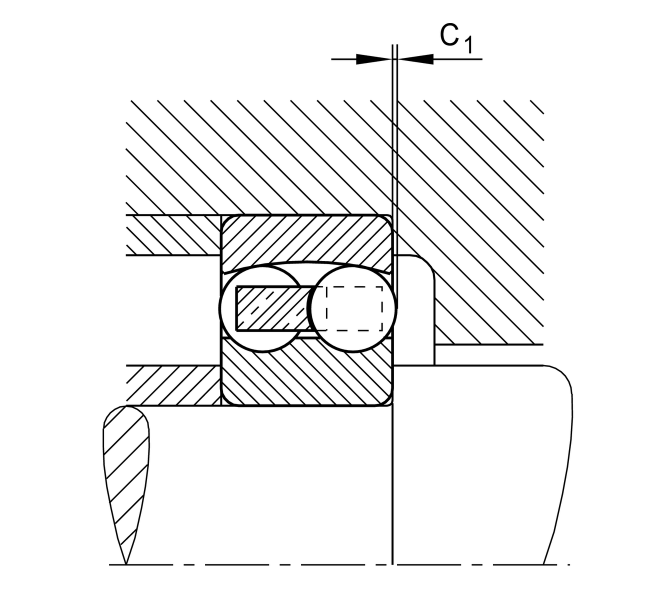

Mounting dimensions
da min
132 mm
Minimum diameter shaft shoulder
da min
203 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum fillet radius
