FAG 126-TVH

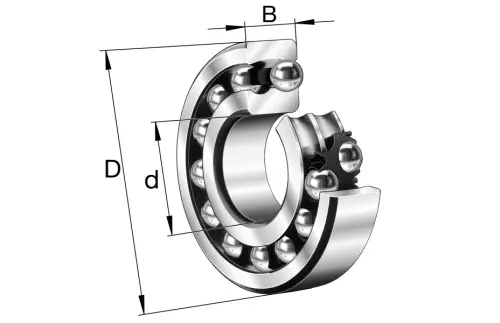

Self-Aligning Ball Bearings
Self-aligning ball bearing 12..-TVH, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

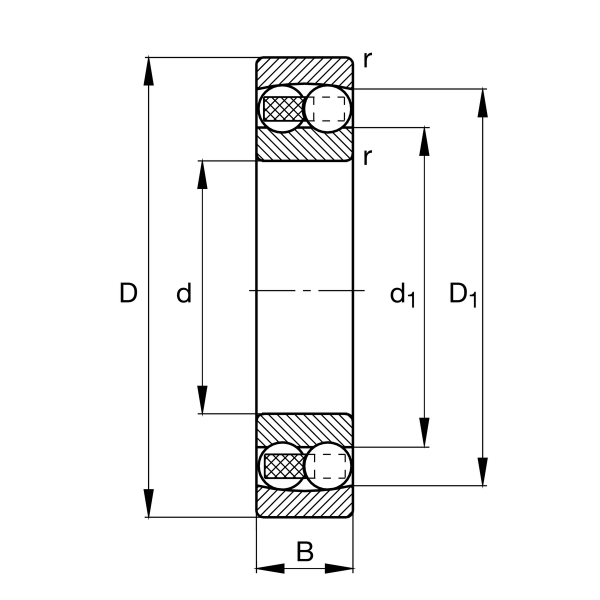

Main Dimensions & Performance Data
d
6 mm
Bore diameter
D
19 mm
Outside diameter
B
6 mm
Width
Cr
2,600 N
Basic dynamic load rating, radial
C0r
480 N
Basic static load rating, radial
Cur
30.5 N
Fatigue load limit, radial
CG
41,500 1/min
Limiting speed
nϑr
30,500 1/min
Reference speed
≈m
0.009 kg
Weight

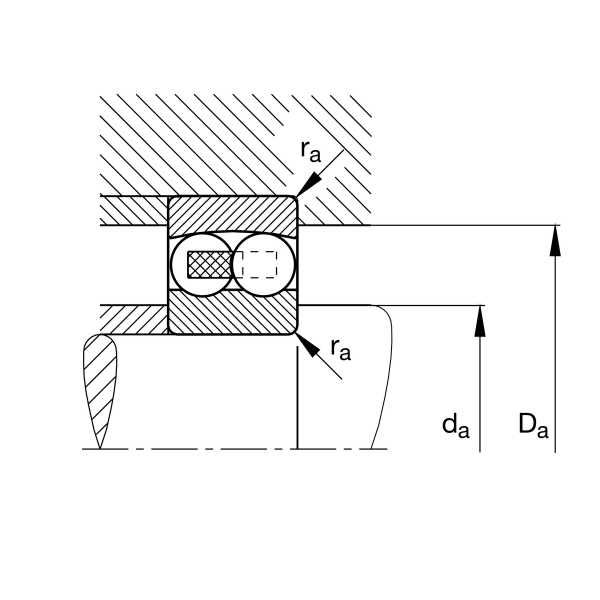

Mounting dimensions
da min
8.4 mm
Minimum diameter shaft shoulder
da min
16.6 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
