FAG 129-TVH
Self-Aligning Ball Bearings

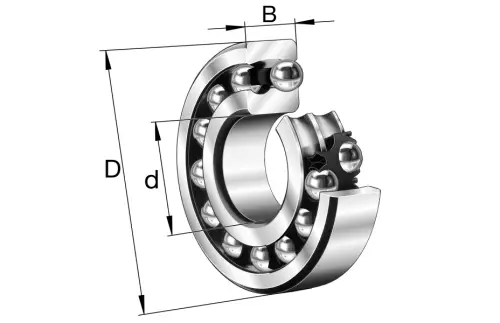

Self-aligning ball bearing 12..-TVH, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

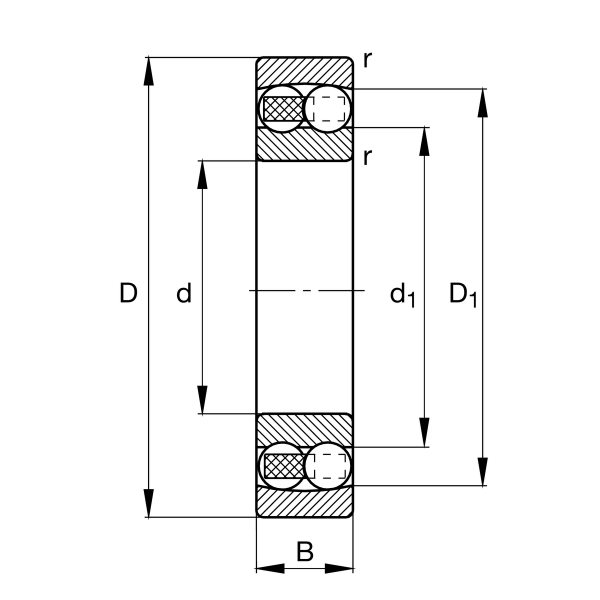

Main Dimensions & Performance Data
d
9 mm
Bore diameter
D
26 mm
Outside diameter
B
8 mm
Width
Cr
3,950 N
Basic dynamic load rating, radial
C0r
810 N
Basic static load rating, radial
Cur
51 N
Fatigue load limit, radial
CG
33,500 1/min
Limiting speed
nϑr
24,100 1/min
Reference speed
≈m
21.2 g
Weight

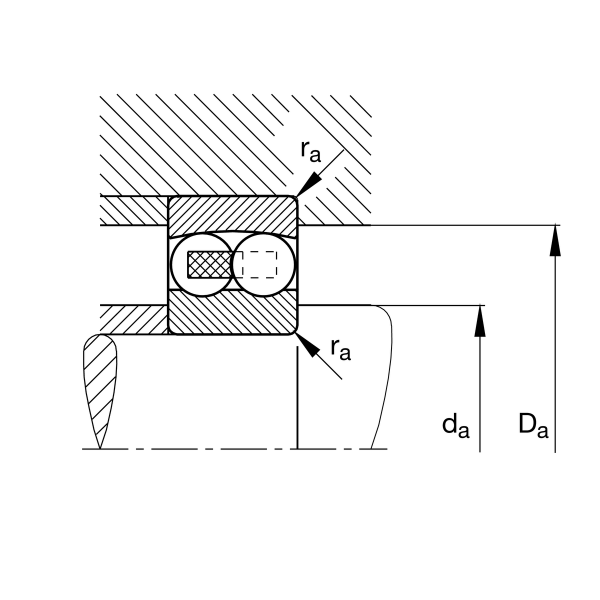

Mounting dimensions
da min
13.2 mm
Minimum diameter shaft shoulder
da min
21.8 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum fillet radius
