FAG 1316-K-M-C3
Self-aligning ball bearing 13..-K-M, tapered bore taper 1:12, solid brass cage
(BRAND)：FAG
(Availability)：In Stock

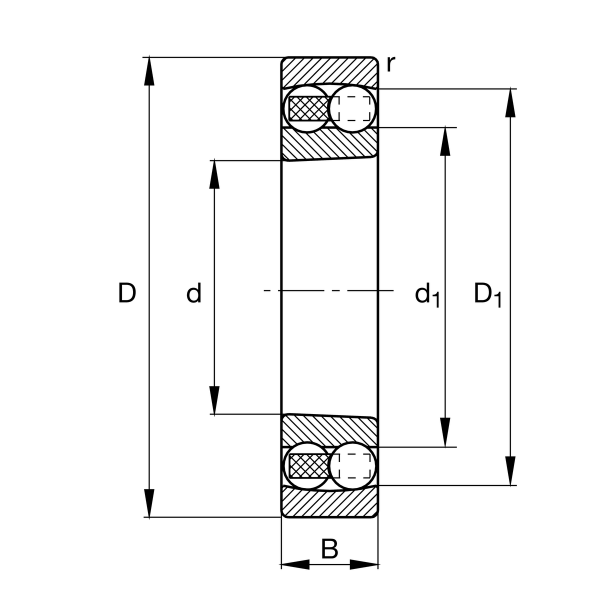

Main Dimensions & Performance Data
d
80 mm
Bore diameter
D
170 mm
Outside diameter
B
39 mm
Width
Cr
89,000 N
Basic dynamic load rating, radial
C0r
33,000 N
Basic static load rating, radial
Cur
1,870 N
Fatigue load limit, radial
CG
6,200 1/min
Limiting speed
nϑr
4,500 1/min
Reference speed
≈m
4.359 kg
Weight

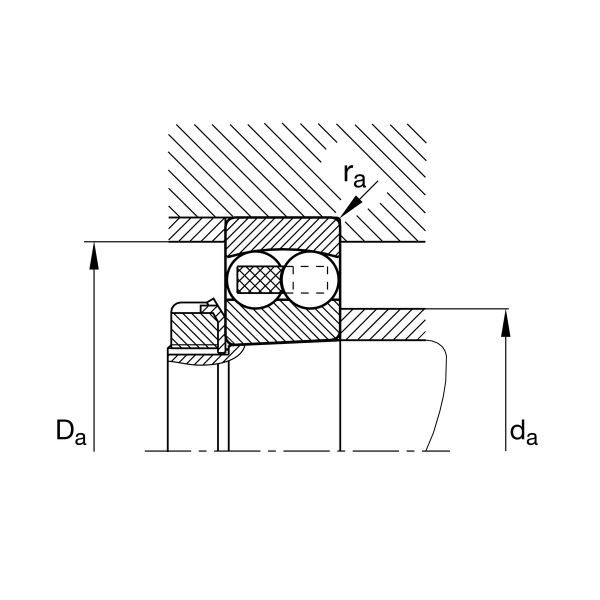

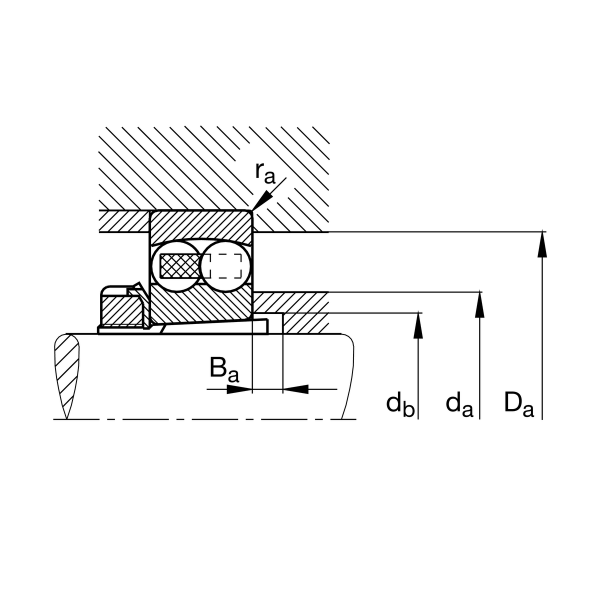

Mounting dimensions
da min
92 mm
Minimum diameter shaft shoulder
da max
107 mm
Maximum diameter shaft shoulder
da min
158 mm
Maximum diameter of housing shoulder
db min
85 mm
Minimum cavity diameter of the sleeve
Ba min
6 mm
Minimum cavity width of the sleeve
ra max
2.1 mm
Maximum fillet radius
