FAG 2202-2RS-TVH-C3>N
Self-Aligning Ball Bearings
Self-aligning ball bearing 22..-2RS-TVH, seals, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

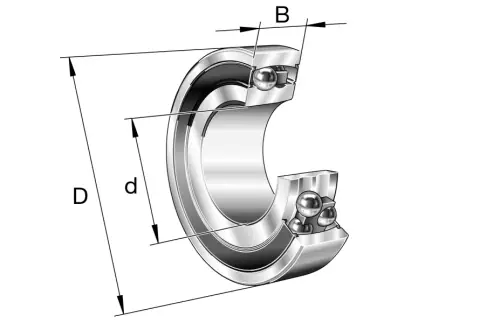

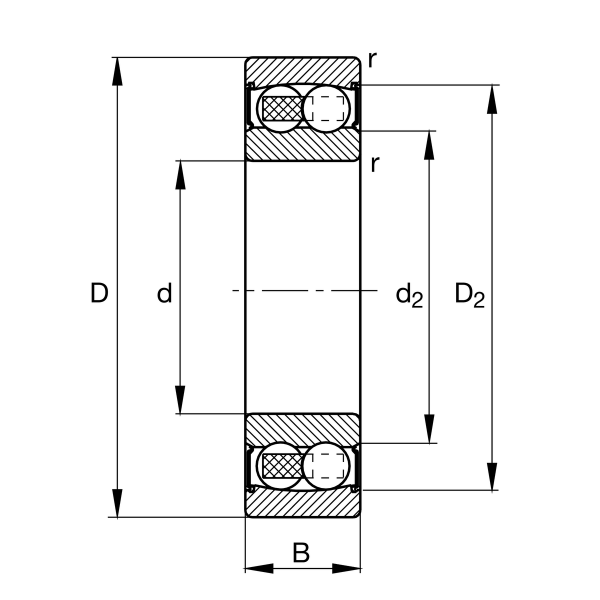

Main Dimensions & Performance Data
d
15 mm
Bore diameter
D
35 mm
Outside diameter
B
14 mm
Width
Cr
7,700 N
Basic dynamic load rating, radial
C0r
1,750 N
Basic static load rating, radial
Cur
111 N
Fatigue load limit, radial
CG
13,700 1/min
Limiting speed
≈m
0.059 kg
Weight

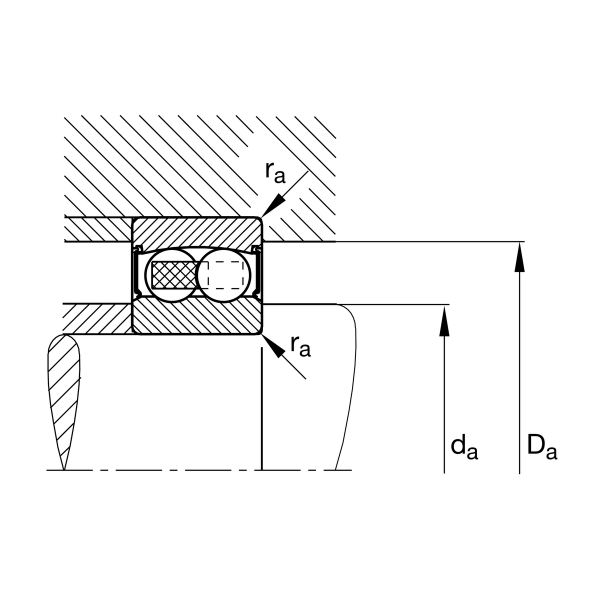

Mounting dimensions
da min
19.2 mm
Minimum diameter shaft shoulder
da min
30.8 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum fillet radius
