FAG 2203-2RS-TVH
Self-Aligning Ball Bearings

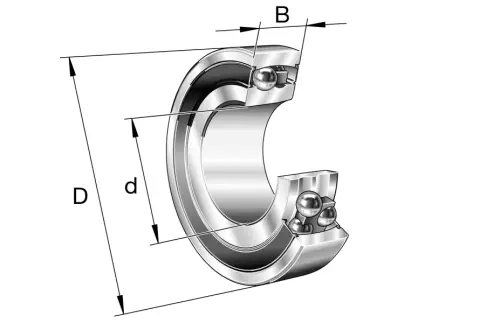

Self-aligning ball bearing 22..-2RS-TVH, seals, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

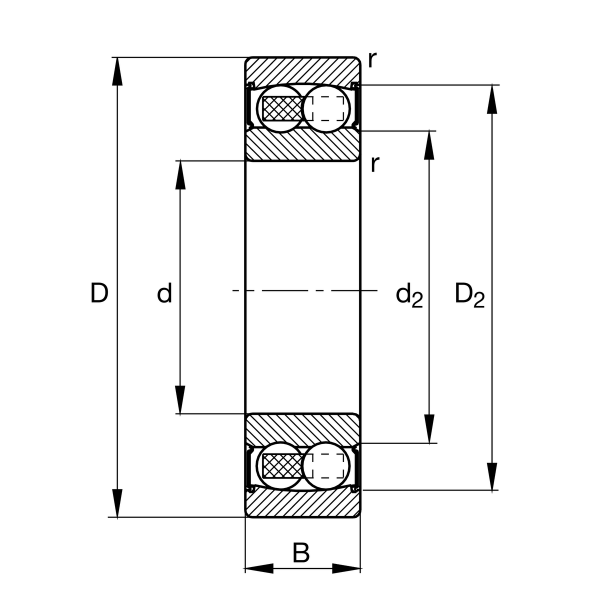

Main Dimensions & Performance Data
d
17 mm
Bore diameter
D
40 mm
Outside diameter
B
16 mm
Width
Cr
8,100 N
Basic dynamic load rating, radial
C0r
2,010 N
Basic static load rating, radial
Cur
128 N
Fatigue load limit, radial
CG
12,100 1/min
Limiting speed
≈m
0.095 kg
Weight

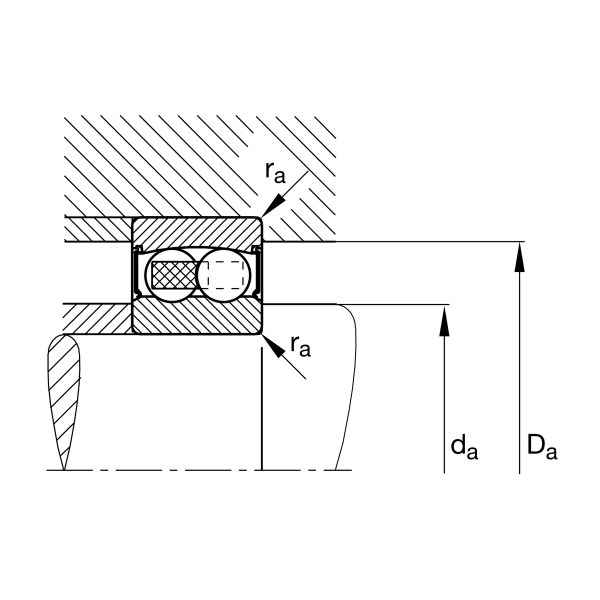

Mounting dimensions
da min
21.2 mm
Minimum diameter shaft shoulder
da min
35.8 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum fillet radius
