FAG 2204-2RS-TVH>N
Self-Aligning Ball Bearings

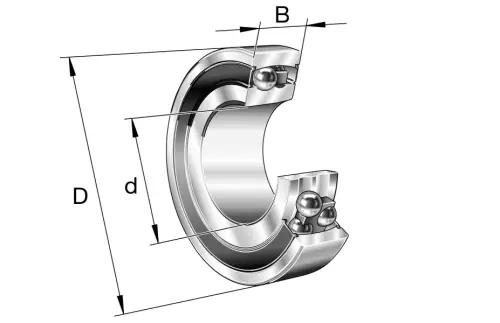

Self-aligning ball bearing 22..-2RS-TVH, seals, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

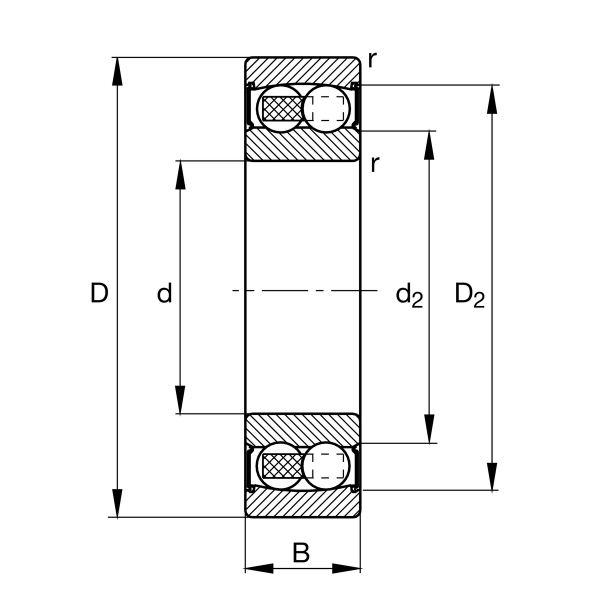

Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
47 mm
Outside diameter
B
18 mm
Width
Cr
10,100 N
Basic dynamic load rating, radial
C0r
2,600 N
Basic static load rating, radial
Cur
166 N
Fatigue load limit, radial
CG
10,100 1/min
Limiting speed
≈m
0.145 kg
Weight

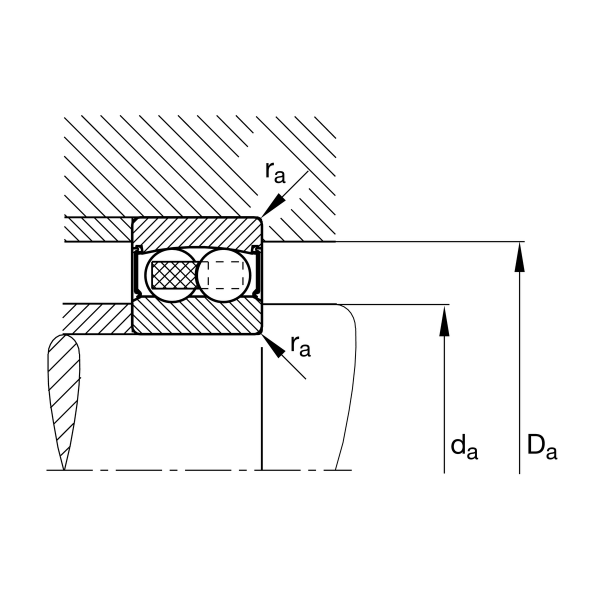

Mounting dimensions
da min
25.6 mm
Minimum diameter shaft shoulder
da min
41.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
