FAG 2205-2RS-TVH>N
Self-Aligning Ball Bearings
Self-aligning ball bearing 22..-2RS-TVH, seals, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

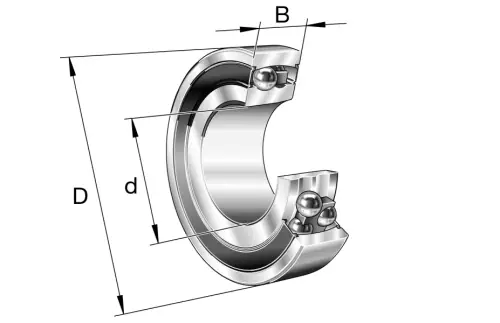

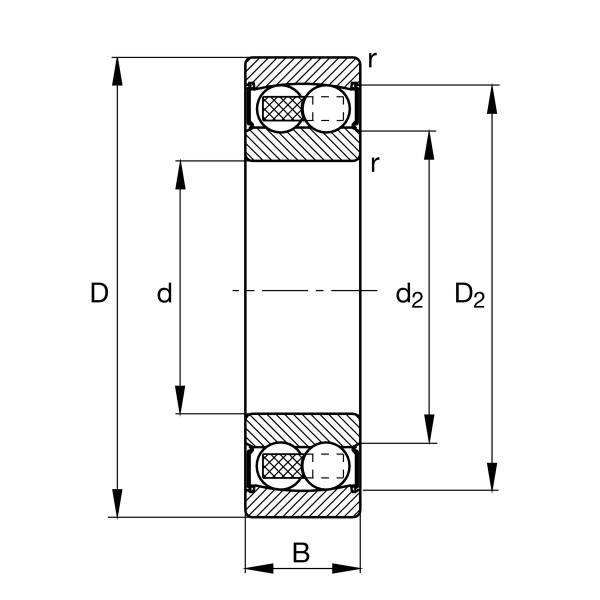

Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
52 mm
Outside diameter
B
18 mm
Width
Cr
12,300 N
Basic dynamic load rating, radial
C0r
3,300 N
Basic static load rating, radial
Cur
209 N
Fatigue load limit, radial
CG
8,500 1/min
Limiting speed
≈m
155 g
Weight

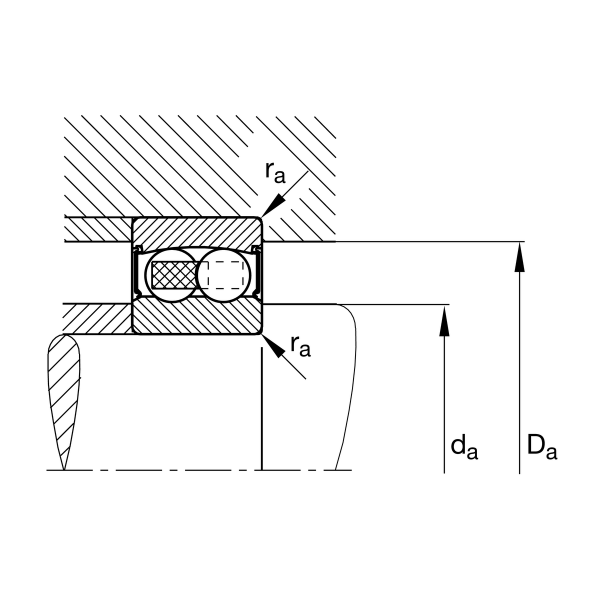

Mounting dimensions
da min
30.6 mm
Minimum diameter shaft shoulder
da min
46.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
