FAG 2215-TVH>N
Self-Aligning Ball Bearings
Self-aligning ball bearing 22..-TVH, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

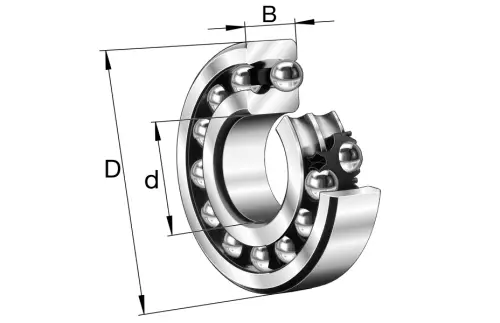

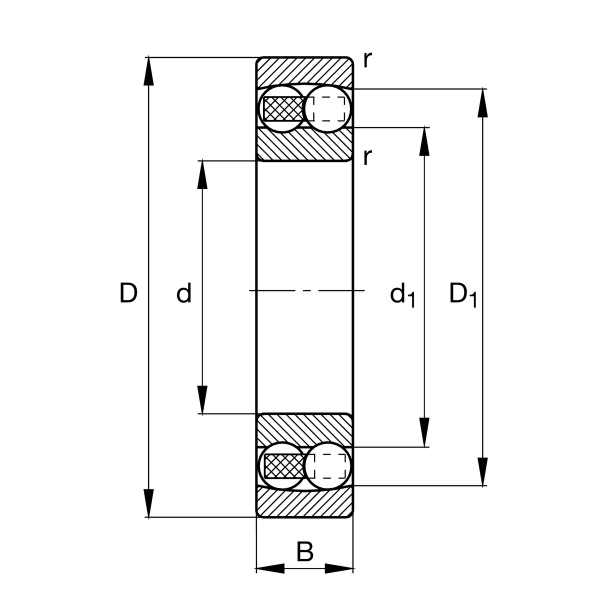

Main Dimensions & Performance Data
d
75 mm
Bore diameter
D
130 mm
Outside diameter
B
31 mm
Width
Cr
44,500 N
Basic dynamic load rating, radial
C0r
17,800 N
Basic static load rating, radial
Cur
1,110 N
Fatigue load limit, radial
CG
5,600 1/min
Limiting speed
nϑr
5,600 1/min
Reference speed
≈m
1.62 kg
Weight

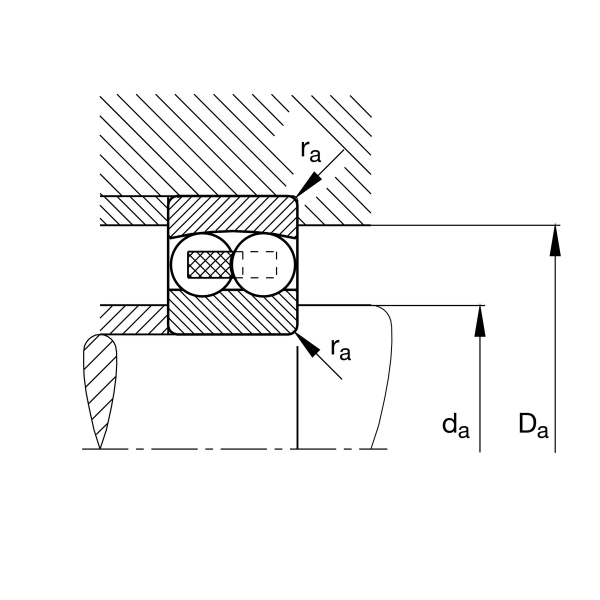

Mounting dimensions
da min
84 mm
Minimum diameter shaft shoulder
da min
121 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum fillet radius
