FAG 2216-2RS-TVH
Self-aligning ball bearing 22..-2RS-TVH, seals, plastic cage
(BRAND)：FAG
(Availability)：In Stock

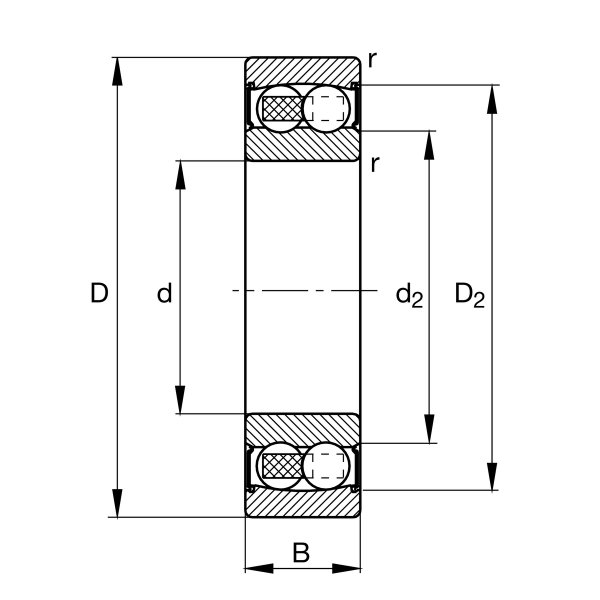

Main Dimensions & Performance Data
d
80 mm
Bore diameter
D
140 mm
Outside diameter
B
33 mm
Width
Cr
40,000 N
Basic dynamic load rating, radial
C0r
17,000 N
Basic static load rating, radial
Cur
1,020 N
Fatigue load limit, radial
CG
2,700 1/min
Limiting speed
≈m
2.01 kg
Weight

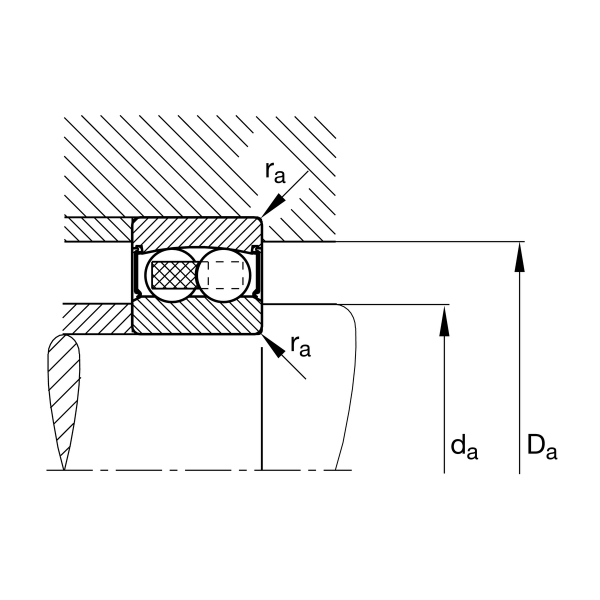

Mounting dimensions
da min
91 mm
Minimum diameter shaft shoulder
da min
129 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum fillet radius
