FAG 2216-K-TVH
Self-aligning ball bearing 22..-K-TVH, tapered bore taper 1:12, plastic cage
(BRAND)：FAG
(Availability)：In Stock

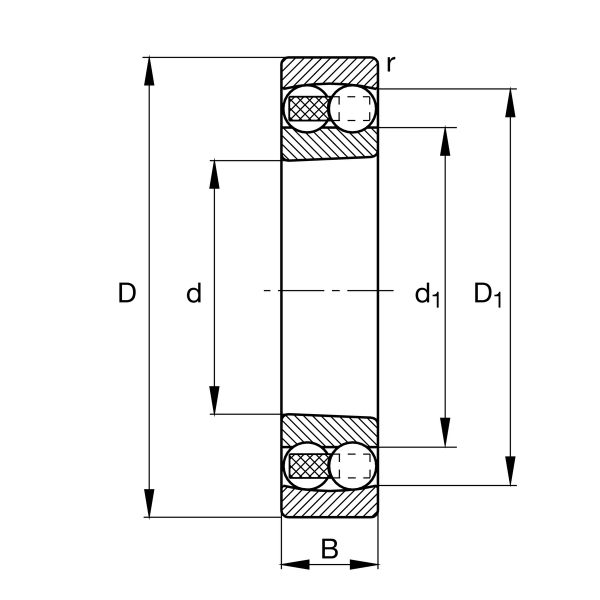

Main Dimensions & Performance Data
d
80 mm
Bore diameter
D
140 mm
Outside diameter
B
33 mm
Width
Cr
49,500 N
Basic dynamic load rating, radial
C0r
19,900 N
Basic static load rating, radial
Cur
1,210 N
Fatigue load limit, radial
CG
5,300 1/min
Limiting speed
nϑr
5,400 1/min
Reference speed
≈m
1.937 kg
Weight

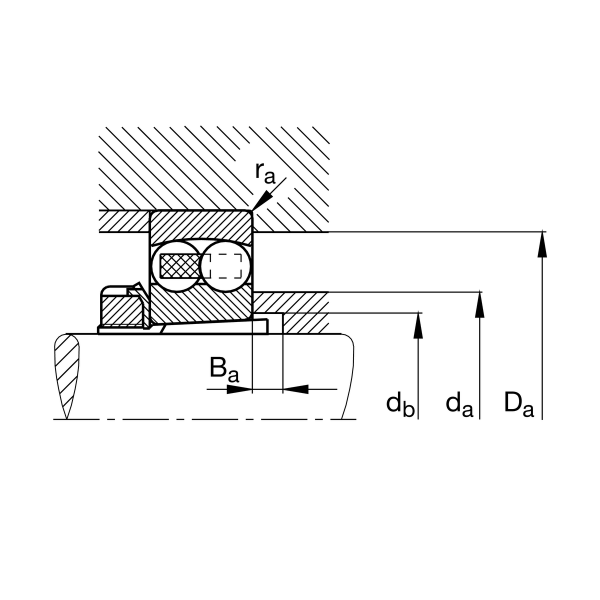

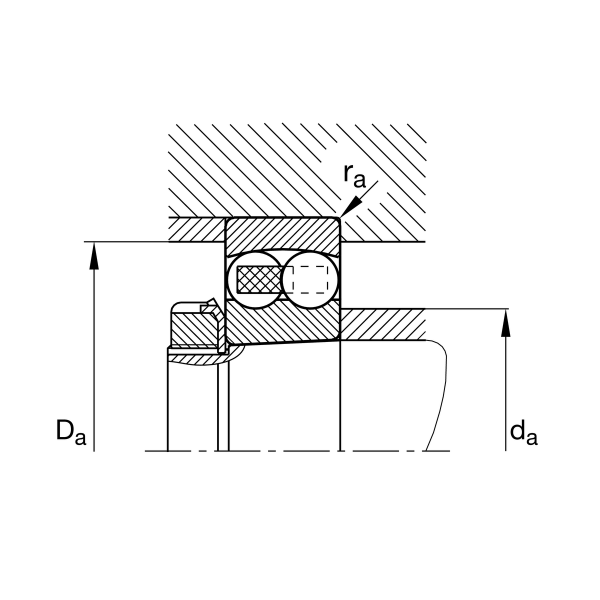

Mounting dimensions
da min
91 mm
Minimum diameter shaft shoulder
da max
96 mm
Maximum diameter shaft shoulder
da min
129 mm
Maximum diameter of housing shoulder
db min
85 mm
Minimum cavity diameter of the sleeve
Ba min
12 mm
Minimum cavity width of the sleeve
ra max
2 mm
Maximum fillet radius
