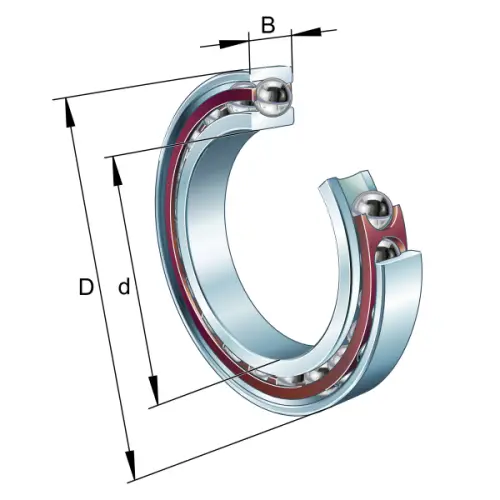

FAG B7004-C-T-P4S-UL
Spindle bearing B70..-C, adjusted, in pairs or sets, contact angle u03B1 = 15u00B0, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock

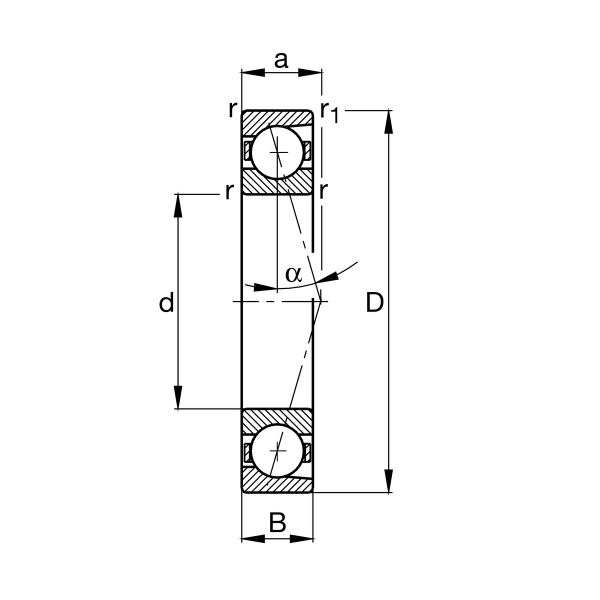

Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
42 mm
Outside diameter
B
12 mm
Width
Cr
10,300 N
Basic dynamic load rating, radial
C0r
4,250 N
Basic static load rating, radial
Cur
450 N
Fatigue load limit, radial
nG Grease
38,000 1/min
Limiting speed for grease lubrication
nG Oil
60,000 1/min
Limiting speed for oil lubrication
≈m
0.07 kg
Weight

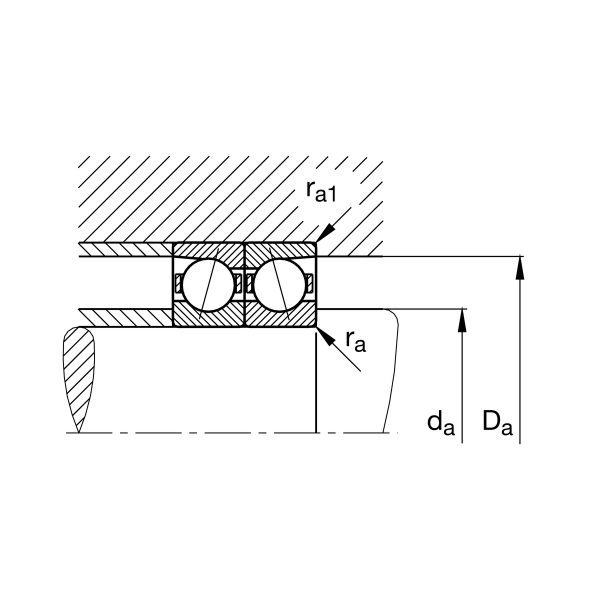

Mounting dimensions
da
25 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
37 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
0.6 mm
Maximum recess radius
ra1 max
0.3 mm
Maximum recess radius

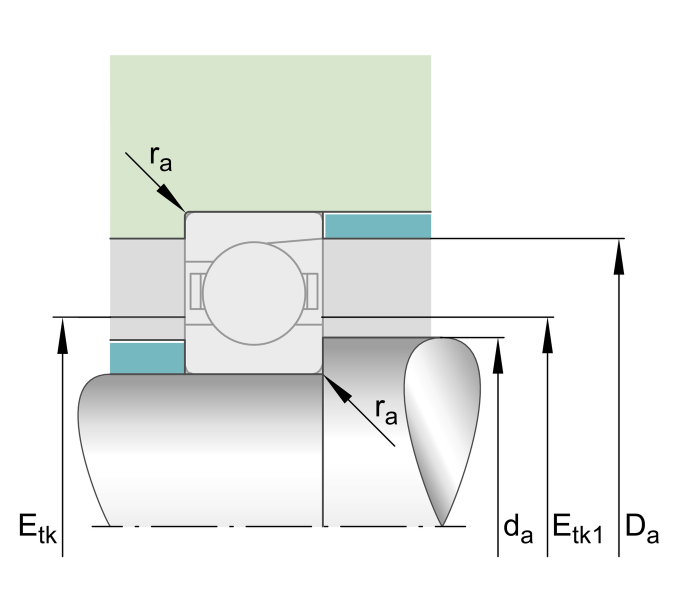

Etk min
27.8 mm
Minimum diameter injection pitch
Etk max
29.3 mm
Maximum diameter injection pitch
Etk1 min
27.8 mm
Minimum diameter injection pitch
Etk1 max
29.3 mm
Maximum diameter injection pitch
a
10.2 mm
Distance between the apexes of the pressure cones
