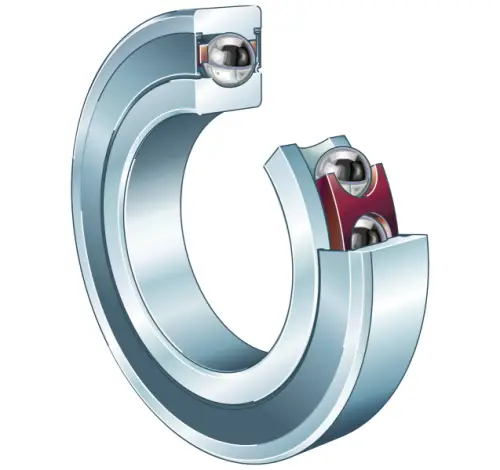

FAG B7028-C-2RSD-T-P4S-UL
Radial Super Precision Bearings
Spindle bearing B70..-C-2RSD, adjusted, in pairs or sets, contact angle u03B1 = 15u00B0, lip seals on both sides, non-contact, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

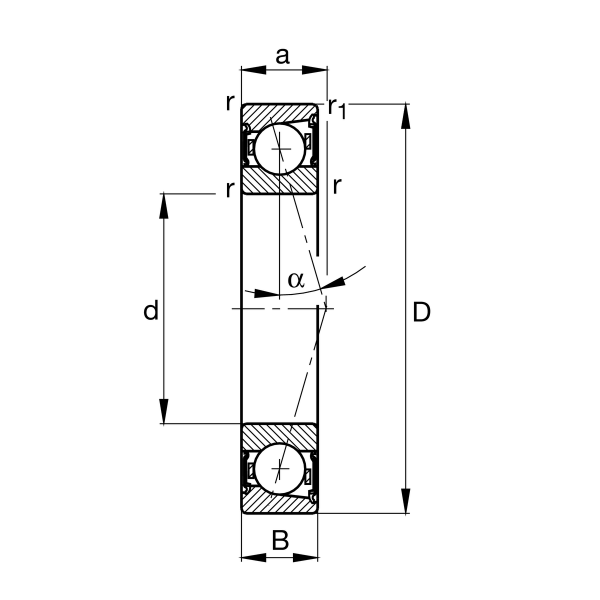

Main Dimensions & Performance Data
d
140 mm
Bore diameter
D
210 mm
Outside diameter
B
33 mm
Width
Cr
153,000 N
Basic dynamic load rating, radial
C0r
114,000 N
Basic static load rating, radial
Cur
9,100 N
Fatigue load limit, radial
nG Grease
6,300 1/min
Limiting speed for grease lubrication
≈m
3.47 kg
Weight

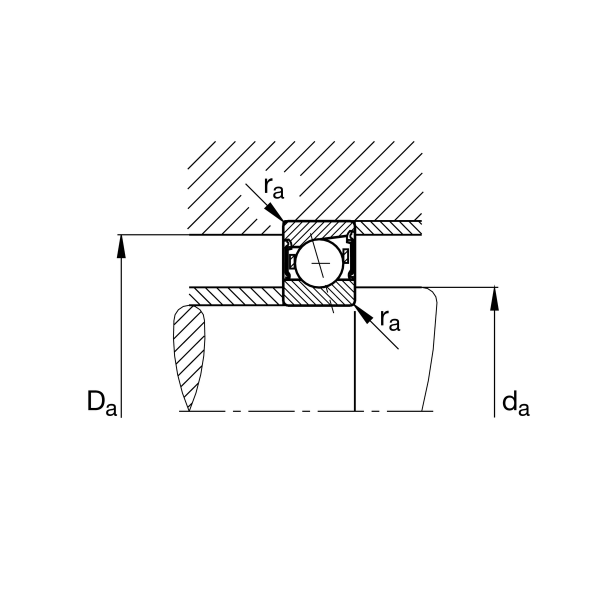

Mounting dimensions
da
152 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
199 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
2 mm
Maximum recess radius
ra1 max
1 mm
Maximum recess radius
a
39.9 mm
Distance between the apexes of the pressure cones
